Component Inspection





Engine Control
P0268 Cylinder 3 Injector Circuit High - Inspection/Repair:_:Component Inspection

Component Inspection

1. IG OFF.
2. Disconnect the Injector connector.
3. Measure the resistance of the Injector.
Specification :

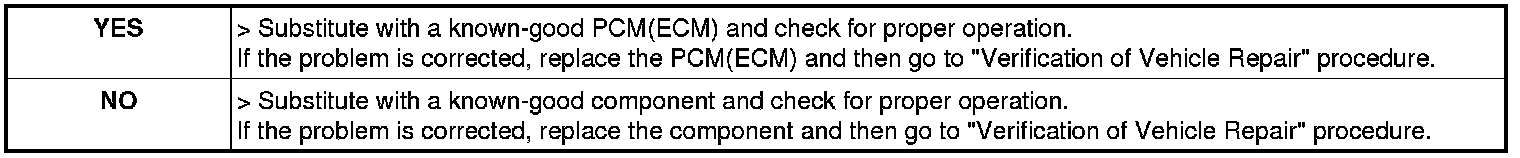

4. Is the measured resistance within specifications?
