Component Inspection

Engine Control
P0237 Turbocharger/Supercharger Boost Sensor \'A\' Circuit Low - Inspection/Repair:_:Component Inspection

Component Inspection

Visually/physically inspect the Boost Pressure Sensor(PUT) for the following conditions:
1. Contamination or deterioration.
2. Poor connection or damaged harness.

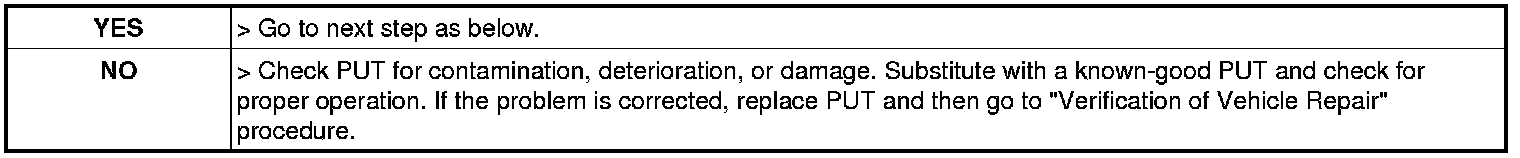

3. Was a problem found?

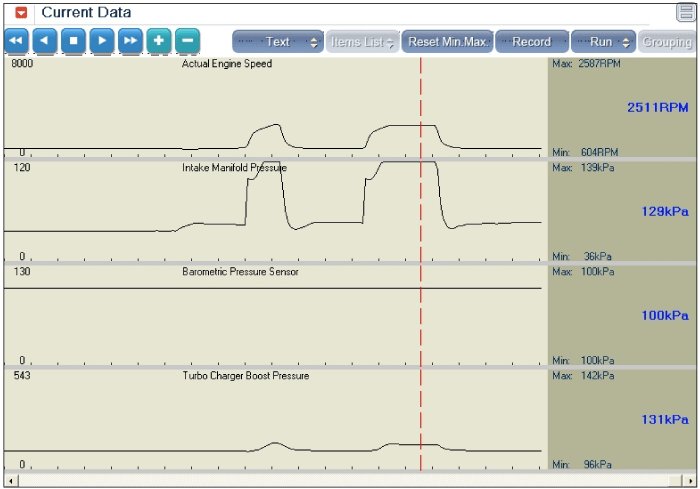

PUT Inspect Signal Waveform
1. Monitor sensor data and signal waveform at accelerating.




2. Is the waveform normal?
