General Information

Engine Control
P0196 Engine Oil Temperature Sensor-Range / Performance - General Information

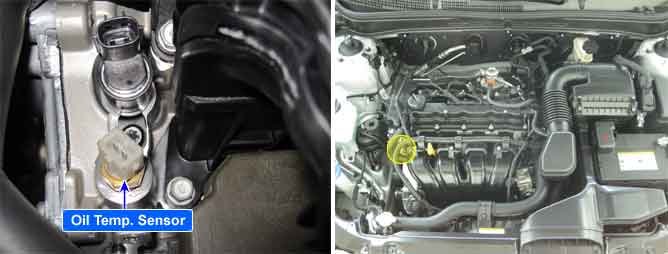

Component Location





General Description

The fluid of the CVVT is the engine oil and its density changes according to the engine oil temperature. At this time the Oil Temperature Sensor (OTS) helps compensation against the temperature differences. The Oil Temperature Sensor measures the engine oil temperature before the engine oil comes into the Oil-flow Control Valve (OCV).
According to the measured temperature, the Engine Control Module (ECM) compensates the oil-flow control valve operation time.

DTC Description

ECM compares the engine oil temperature, coolant and intake air temperature. ECM sets DTC P0196 when the variation of measured engine oil temperature is out of range in threshold value.

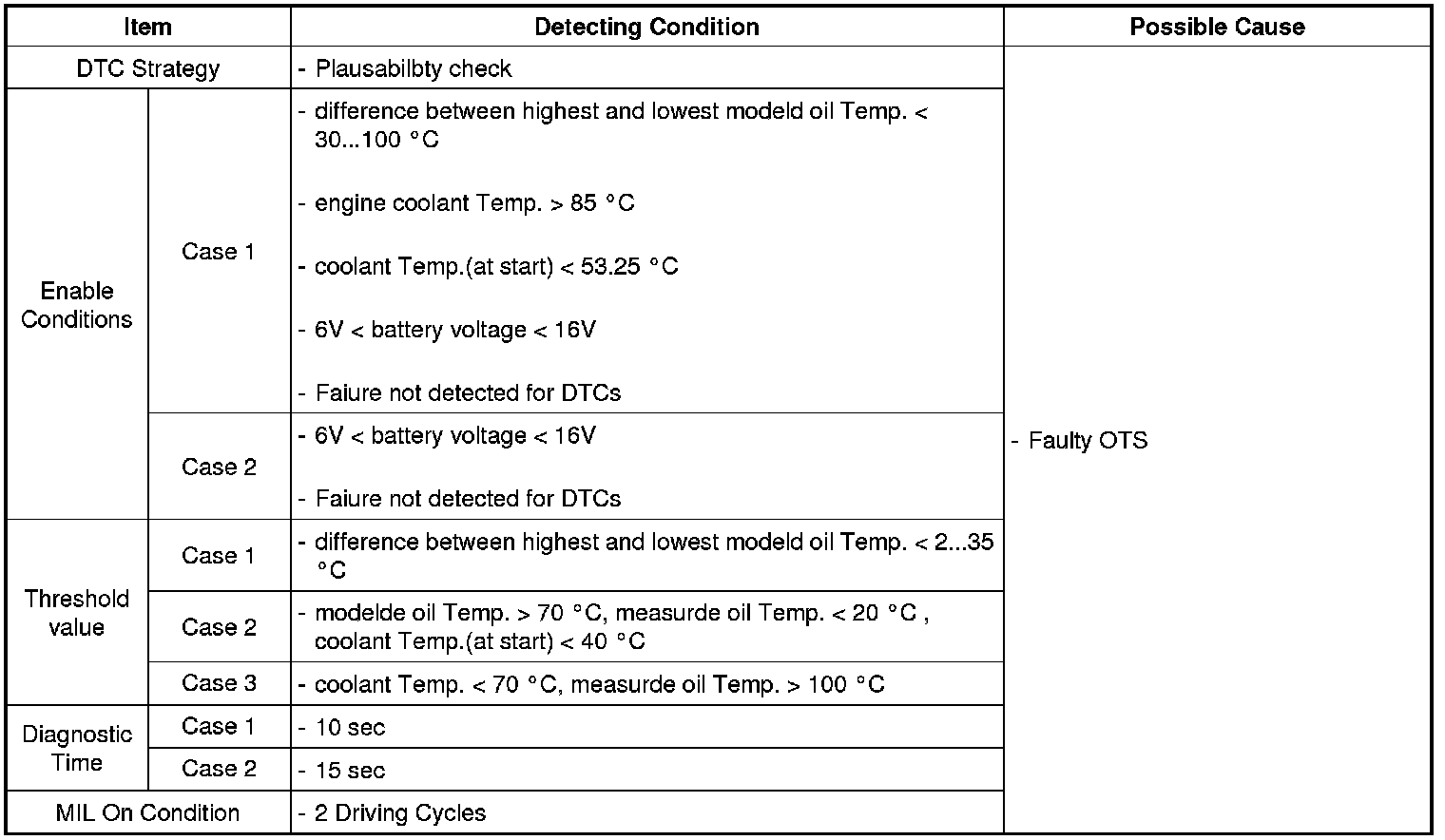

DTC Detecting Condition

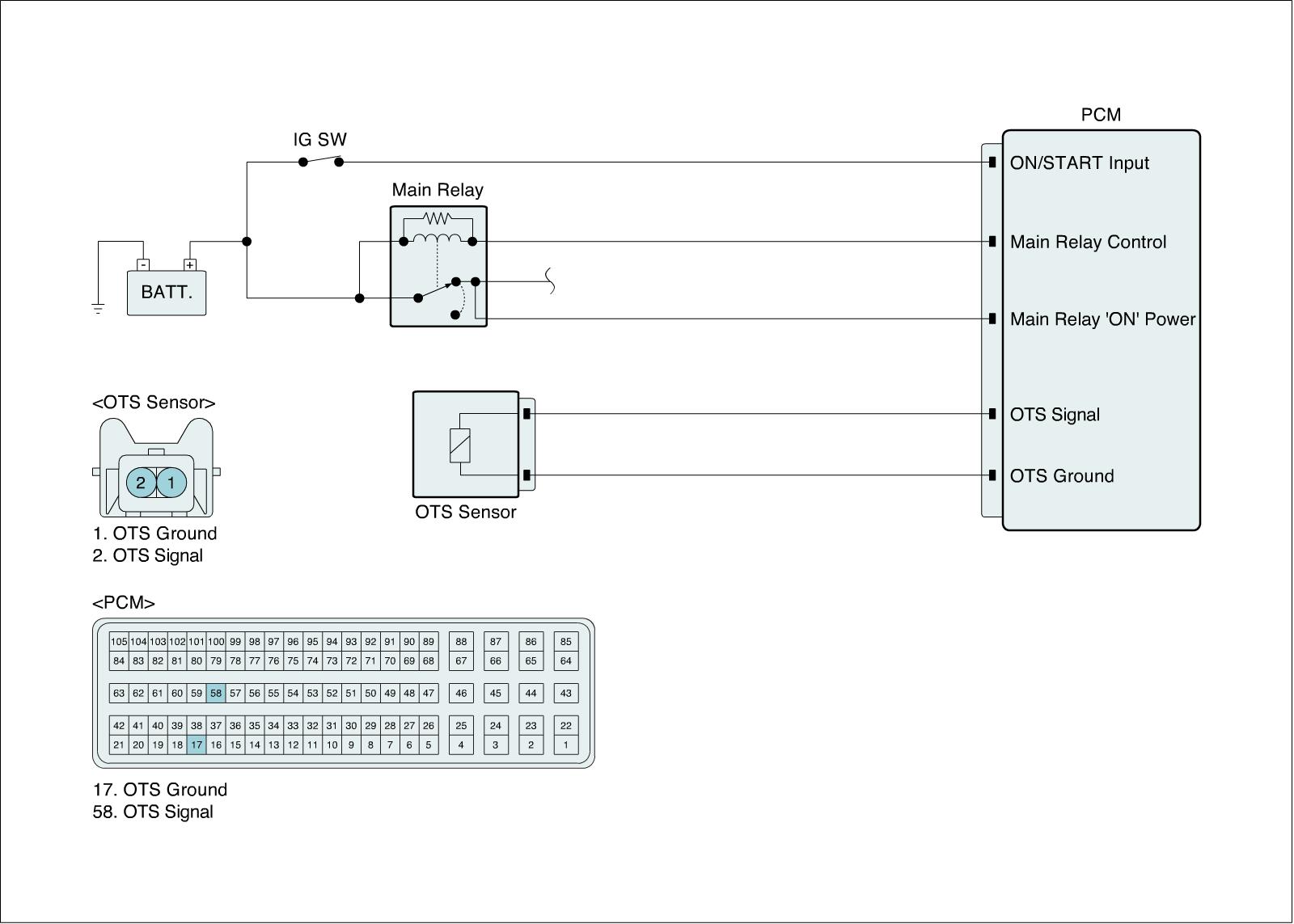

Diagnostic Circuit Diagram

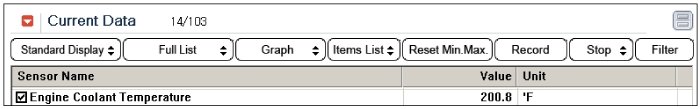

Signal Waveform & Data
