Component Inspection





Engine Control
P0118 Engine Coolant Temperature Circuit High Input - Inspection/Repair:_:Component Inspection

Component Inspection

1. Measure the resistance between signal terminal and ground terminal of ECTS connector. (Component side)

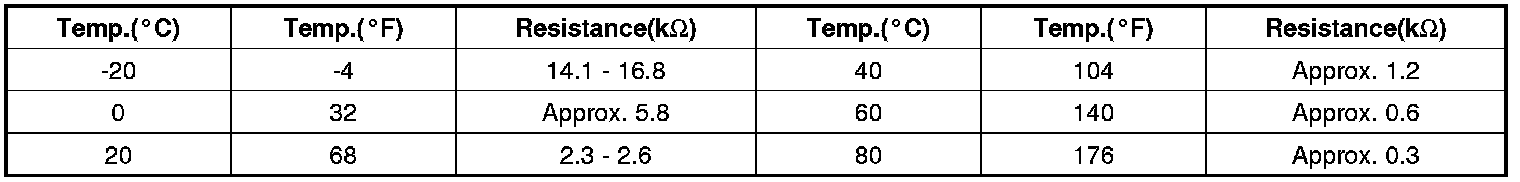

Specification









2. Is the resistance within the specification?
