Component Inspection





Engine Control
P0113 Intake Air Temperature Sensor 1 Circuit High Input - Inspection/Repair:_:Component Inspection

Component Inspection

1. Ignition "OFF".
2. Disconnect IATS connector.
3. Measure the resistance between signal terminal and ground terminal of the sensor connector(Component side).

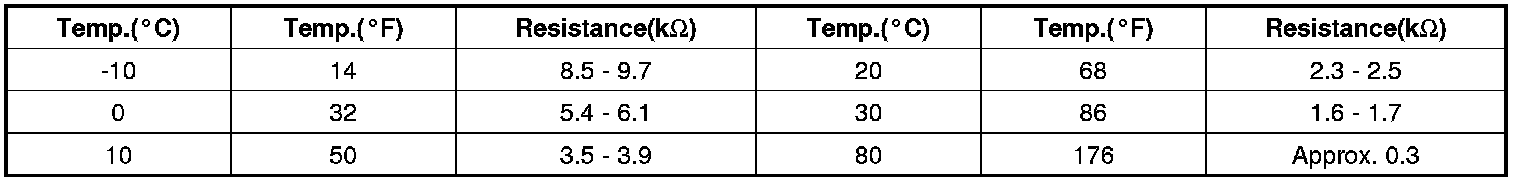

Specification

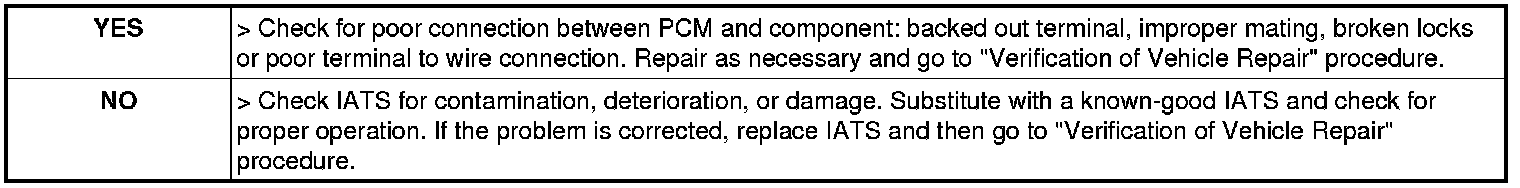

4. Is resistance within the specification?
