Component Inspection





Engine Control
P0111 Intake Air Temperature Sensor 1 Circuit Range / Performance - Inspection/Repair:_:Component Inspection

Component Inspection

1. Ignition "OFF".
2. Disconnect IATS connector.
3. Measure the resistance between signal terminal and ground terminal of the sensor connector(Component side).

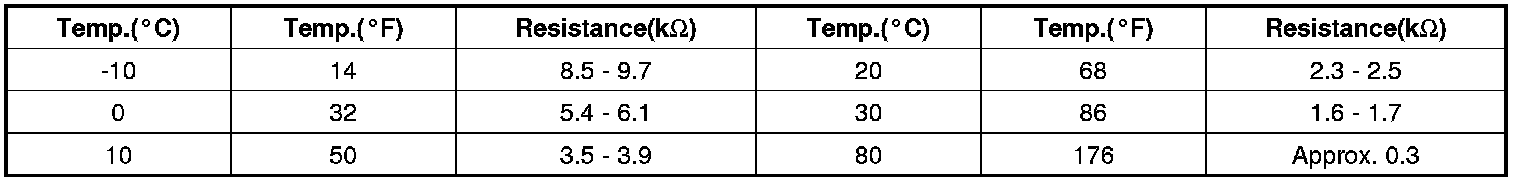

Specification









4. Is resistance within the specification?
