Component Inspection

Engine Control
P0090 Fuel Pressure Regulator 1 Control Circuit/Open - Inspection/Repair:_:Component Inspection

Component Inspection

1. IG OFF.
2. Disconnect the Fuel Pressure Regulator Valve (FPR) connector.
3. Connect probes to each terminal of FPR connector.
4. Measure FPR resistance.

Specification :Approx. 1Ohms

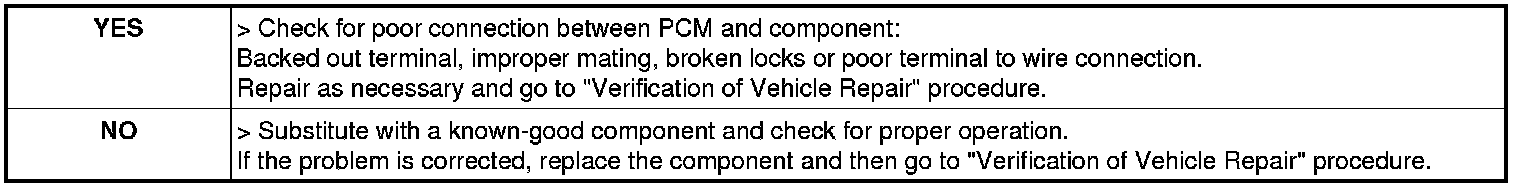

5. Is the measured resistance within specifications?
