P0089 Fuel Pressure Regulator 1 Performance - General Information

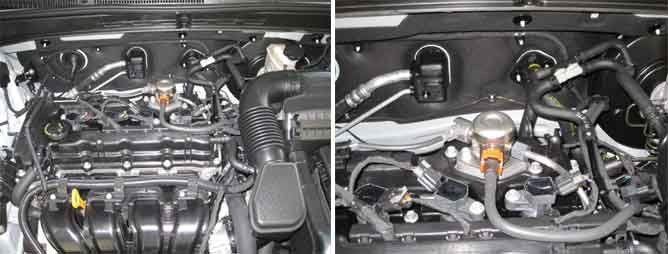

Component Location





General Description

The Low Pressure Pump (LPP) supplies 65 psi(4.5 bar) of fuel pressure to the High Pressure Pump (HPP).
Using the internally located Fuel Pressure Regulator Valve (FPR), the HPP will boost the fuel pressure from 580 psi(40 bar) at idle to a maximum of 1958 psi(135 bar).
The Fuel Pressure Sensor (FPS) confirms the fuel pressure and returns the signal to the Powertrain Control Module (PCM).
Fuel pressure during limp-home mode is 65 psi(4.5 bar).

DTC Description

P0089 is set when a fuel pressure is too low or high compared with a set point.

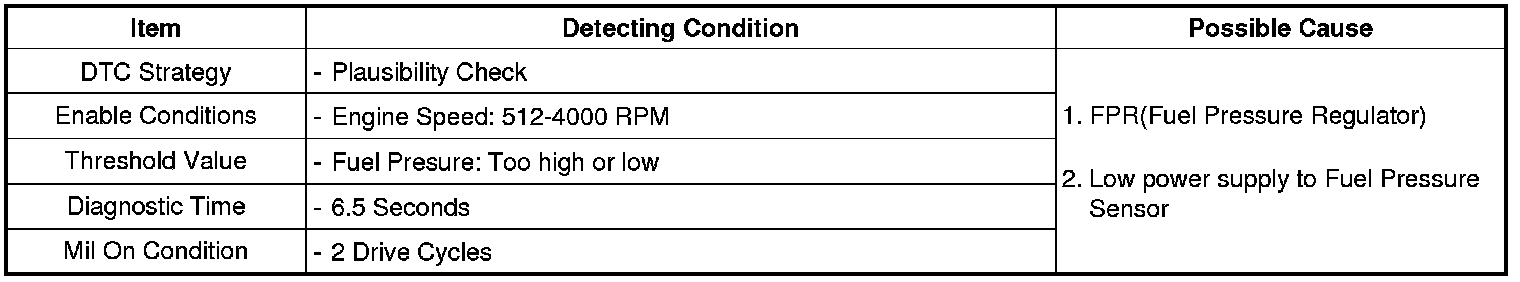

DTC Detecting Condition

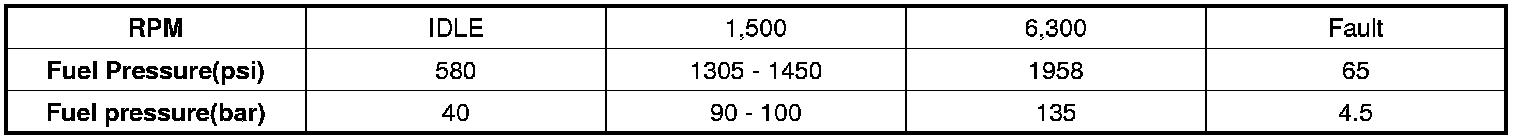

Specification

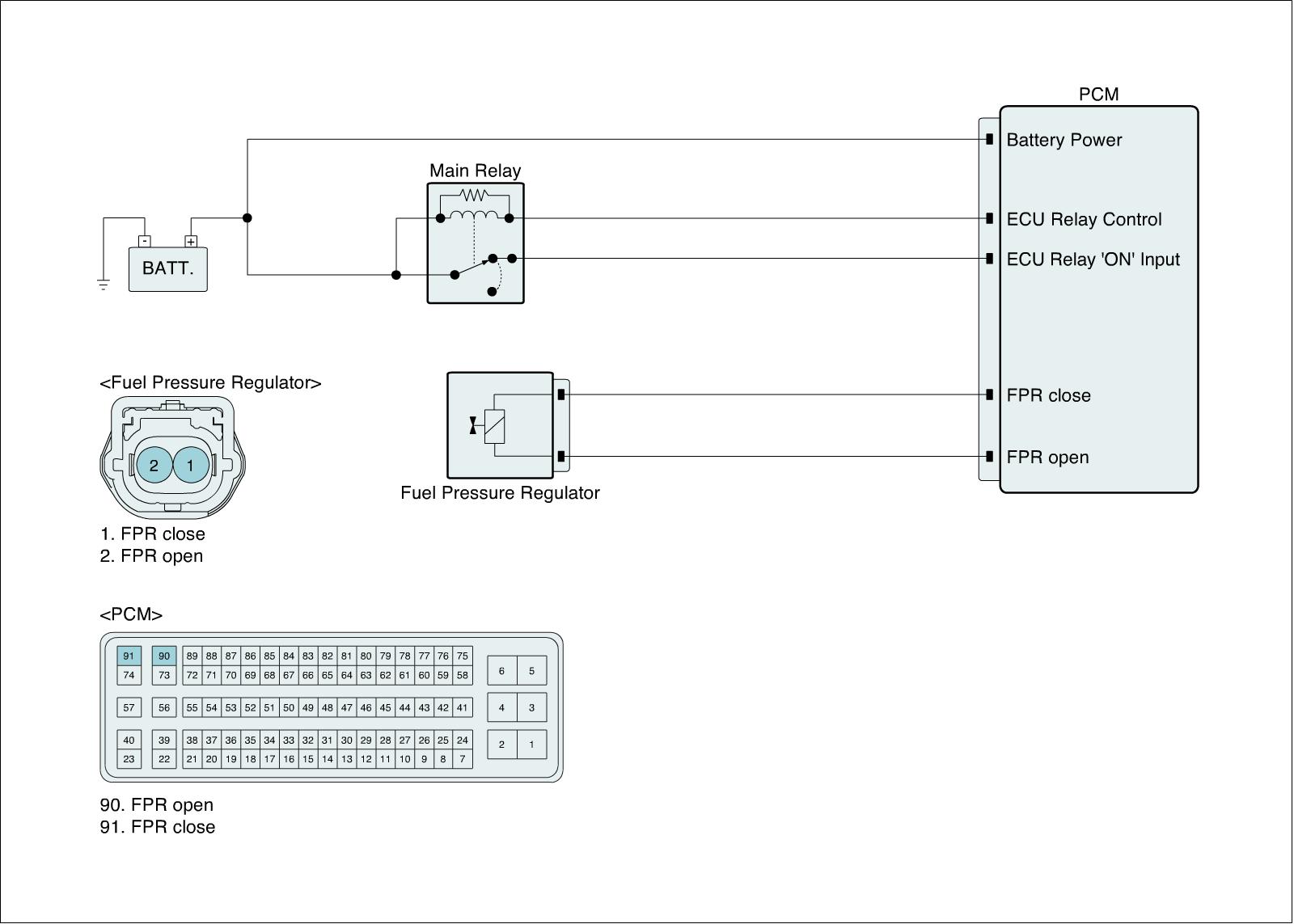

Diagnostic Circuit Diagram





Signal Waveform & Data

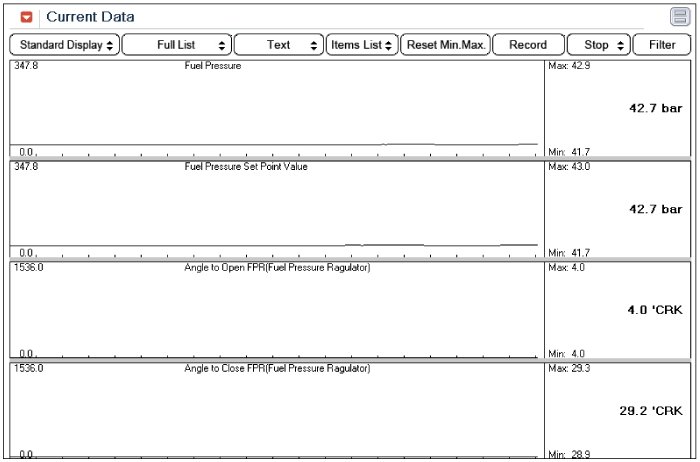

- Fuel pressure, Fuel pressure set point, FPR angle to open/close values at Idle state.

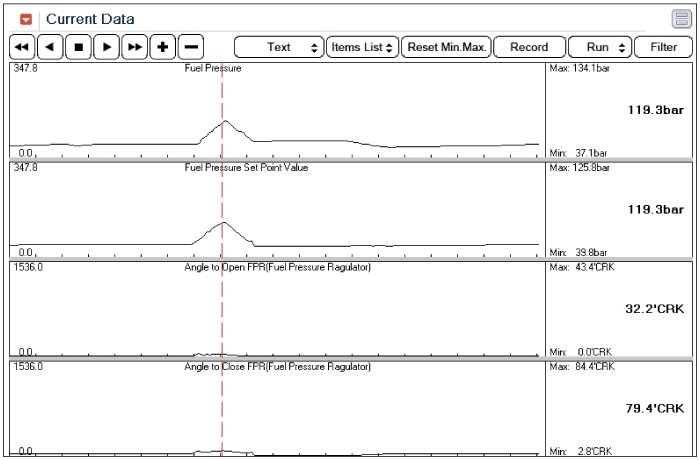

- Fuel Pressure Regulator Valve (FPR) control value during increase and decrease of RPM.
