General Information

Engine Control
P0049 Turbocharger/Supercharger Turbine Overspeed - General Information

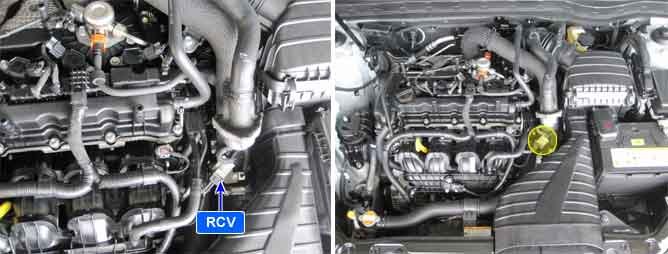

Component Location





General Description

The turbo charger uses exhaust energy to rotate the turbine. The turbine rotates the compressor to the axis in order to compress the intake air. The compressed intake air is cooled through the intercooler, and provided it with the engine. The efficiency of the engine increases (NA compared 30 - 40%) and also drops the quantity of harmful exhaust gas.

DTC Description

PCM sets DTC P0049 if the ECM detects that turbine speed of turbo charger is more than 172,000 rpm.

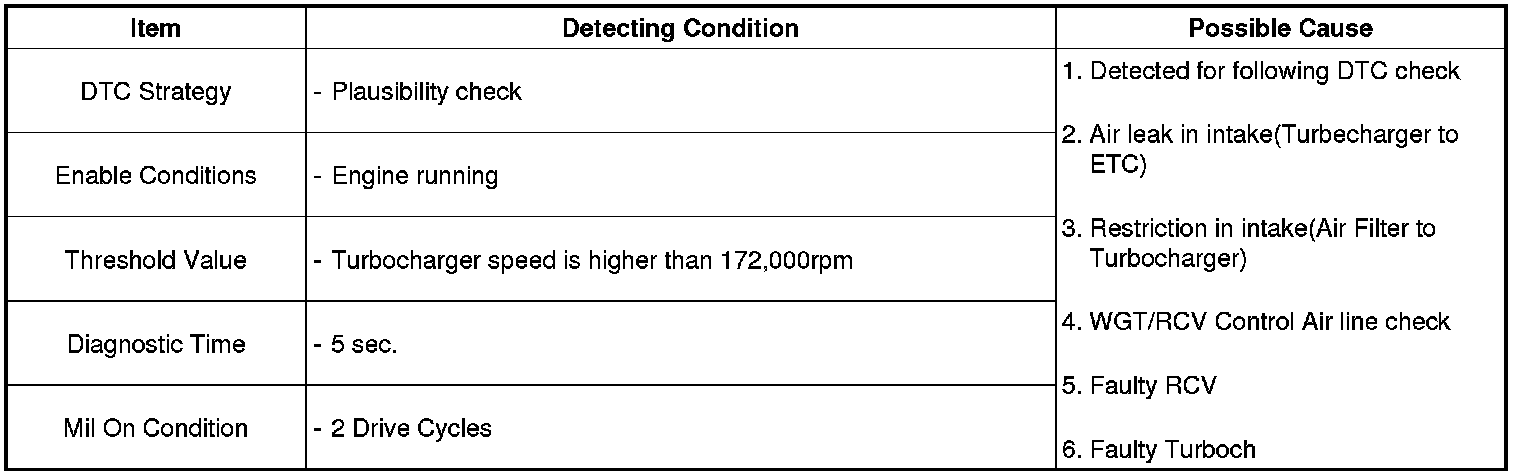

DTC Detecting Condition

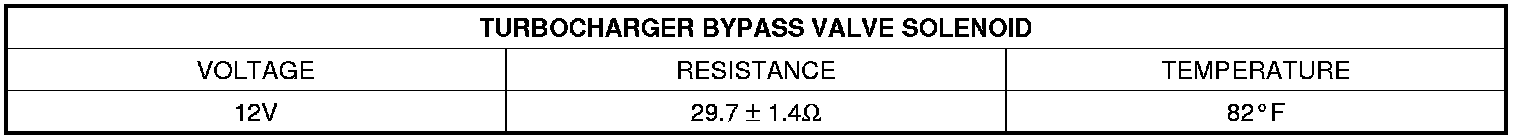

Specification

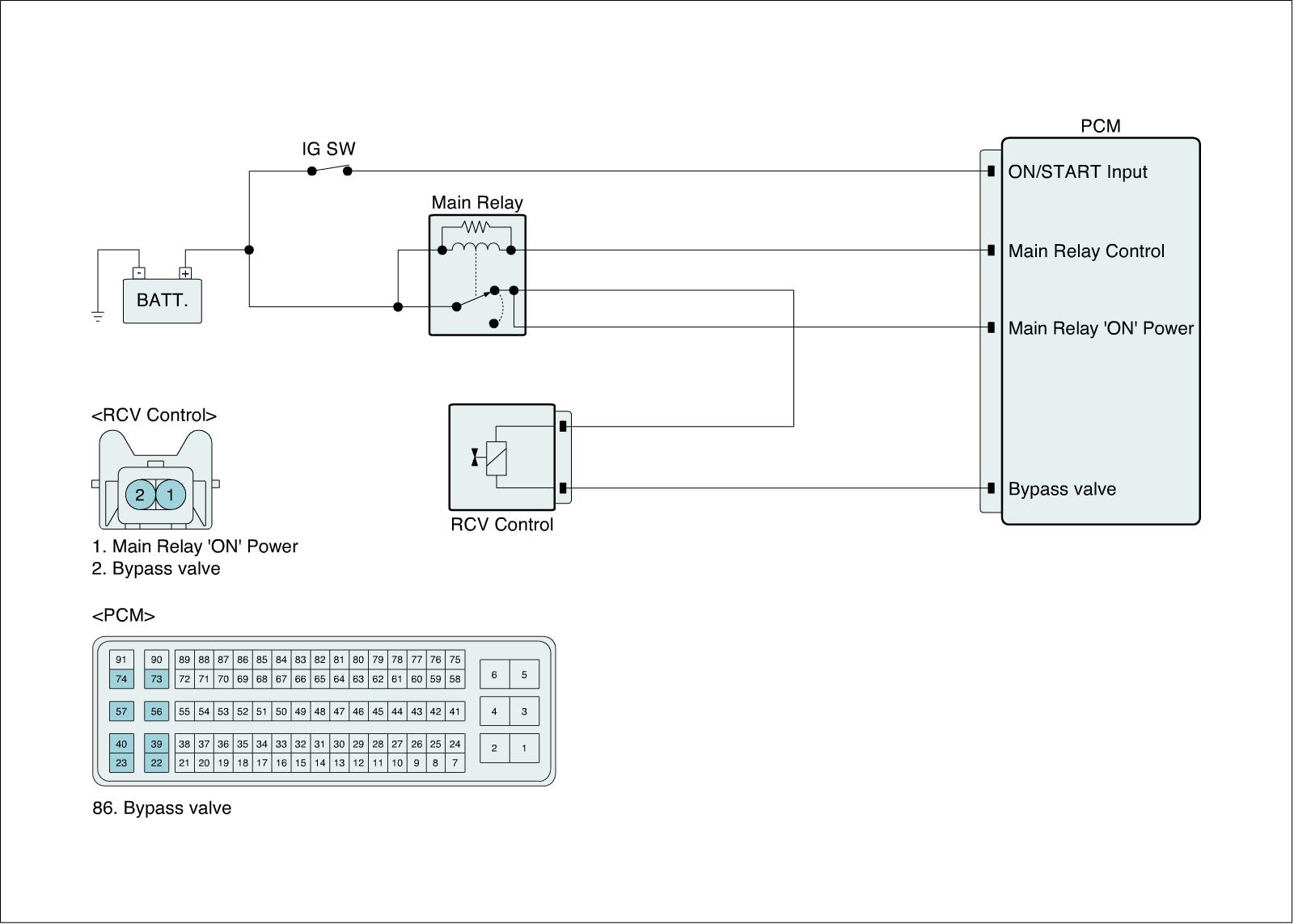

Diagnostic Circuit Diagram





Signal Waveform & Data

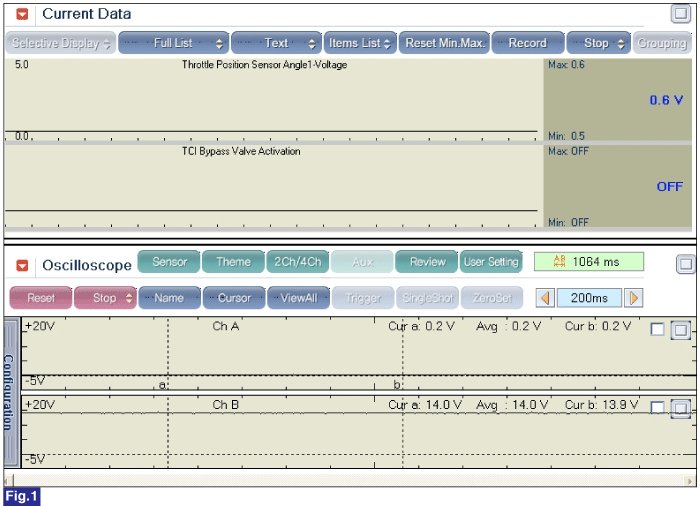

Fig 1) RCV non-operating status

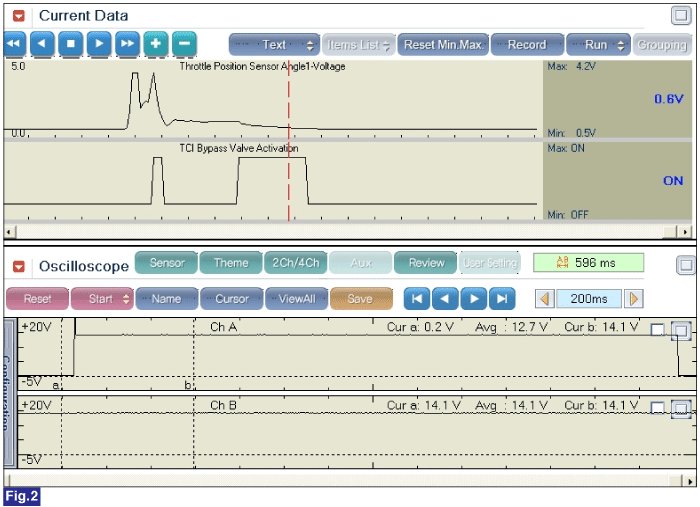

Fig 2) RCV operating status
