Component Inspection

Engine Control
P0036 HO2S Heater Control Circuit (Bank 1 / Sensor 2) - Inspection/Repair:_:Component Inspection

Component Inspection

1. Ignition "OFF".

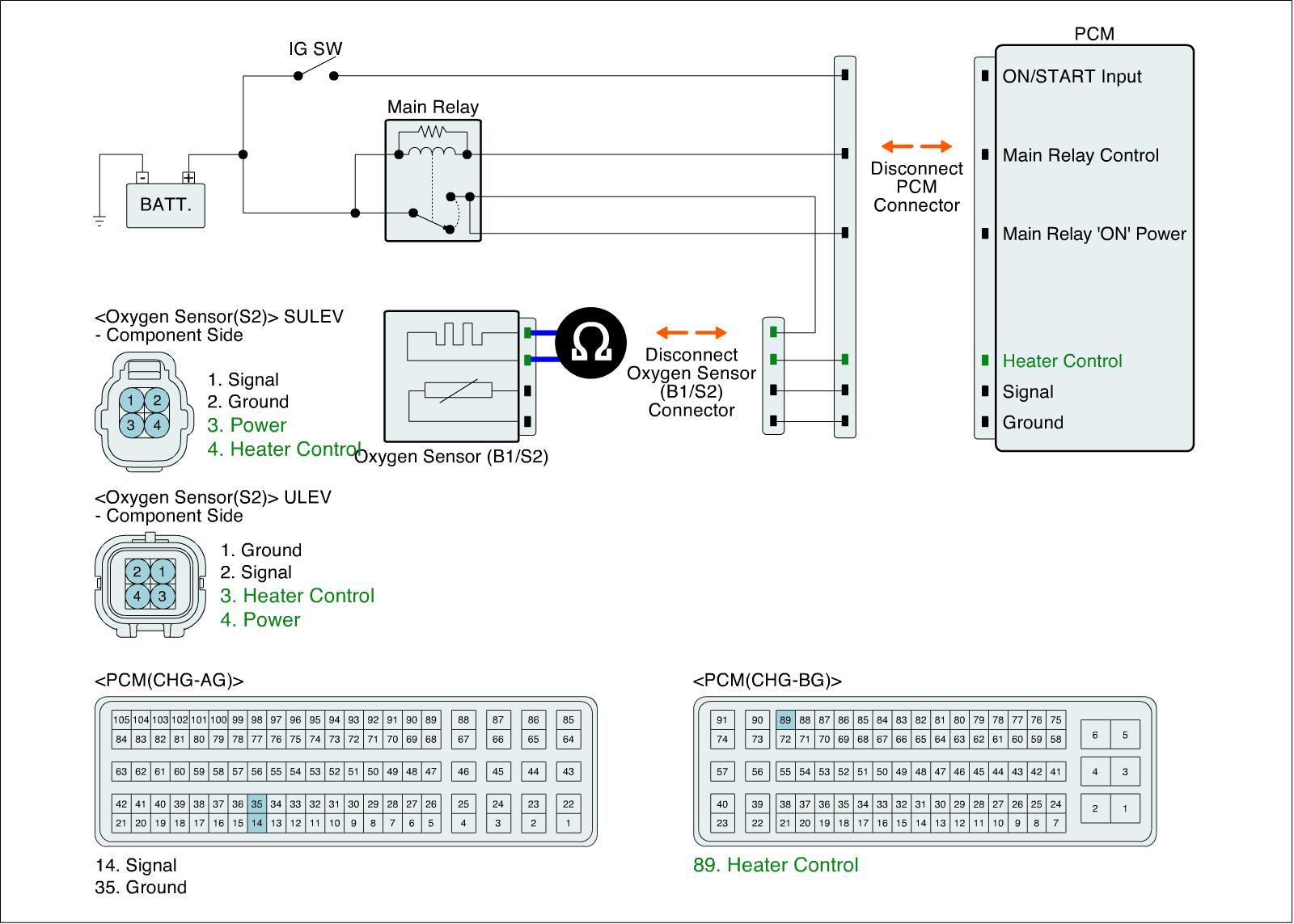

2. Measure resistance between power terminal and control terminal of the sensor connector.(Component side)
Specification
