Component Inspection





Engine Control
P0031 HO2S Heater Control Circuit Low (Bank 1 / Sensor 1) - Inspection/Repair:_:Component Inspection

Component Inspection

1. Ignition "OFF".
2. Disconnect HO2S connector.

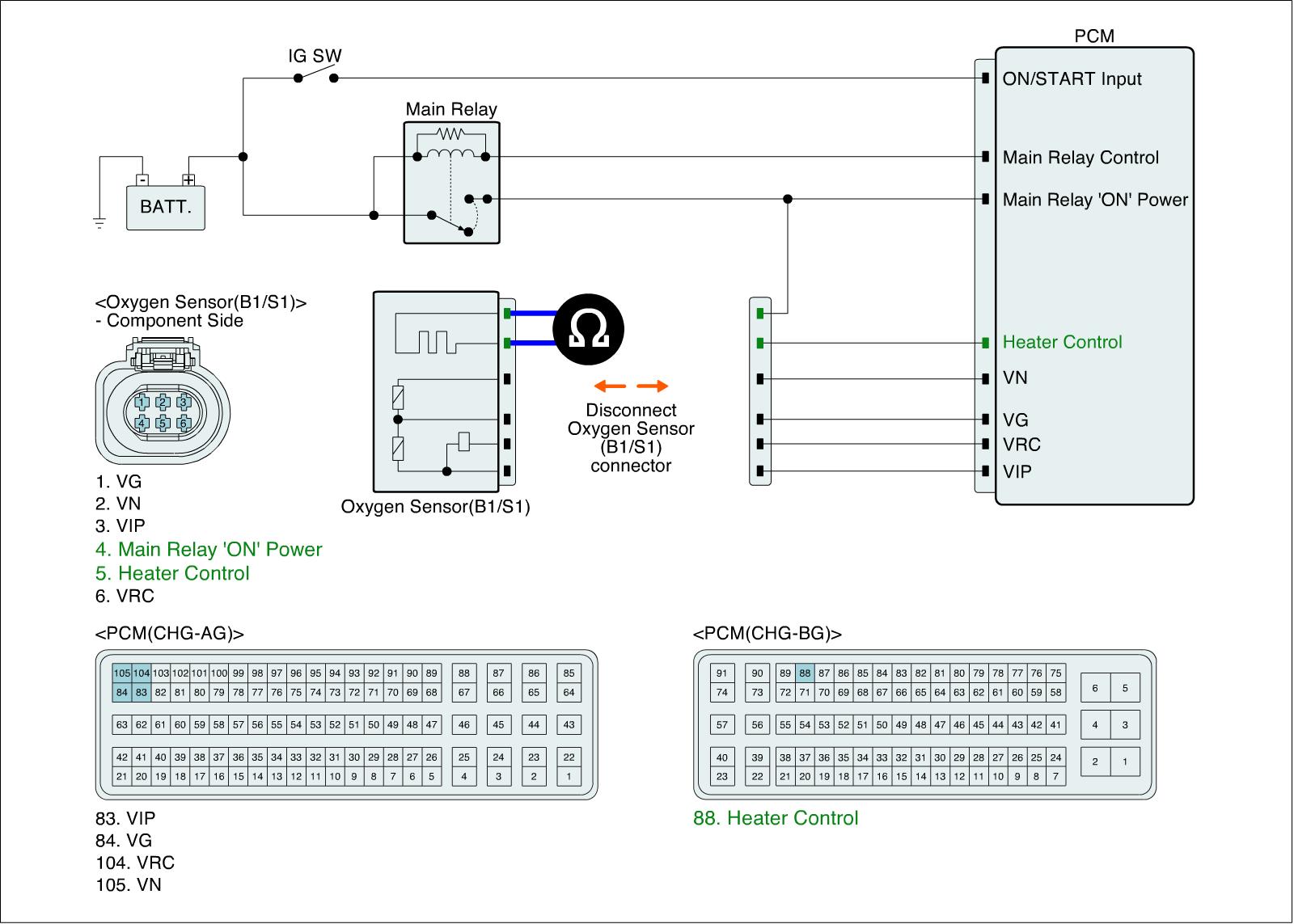

3. Measure resistance between Heater Control terminal and Heater Power terminal of the HO2S connector. (Component side)

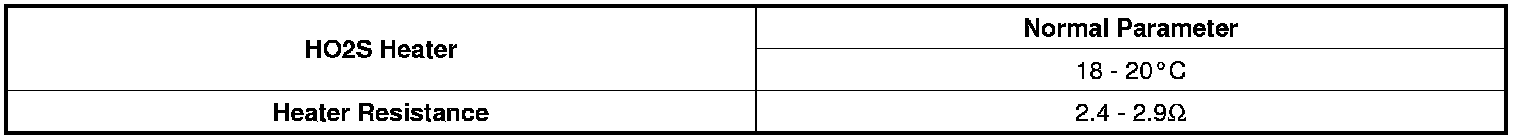

Specification :









4. Is HO2S heater resistance display near the specified value?
