P0017 Crankshaft Position - Camshaft Position Correlation (Bank 1 Sensor B) - General Information

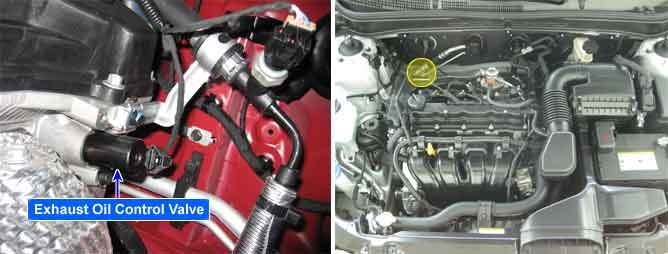

Component Location





General Description

The CVVT (Continuously Variable Valve Timing) system is installed to the chain sprocket of the camshafts. This system controls the camshaft to provide the optimal valve timing for whole driving condition. The PCM controls the Oil Control Valve(OCV), based on the signals output from air flow, throttle position and engine coolant temperature. The CVVT controller regulates the camshaft angle using oil pressure through the OCV. As result, the relative position between the camshaft and the crankshaft becomes optimal, and the engine torque improves, fuel economy improves, exhaust emissions decrease under overall driving conditions.

DTC Description

This diagnosis checks the camshaft position plausibility whether the expected range plus some margin is not violated that might be caused by a wrong engine repair, or a chain/belt misalignment. DTC P0017 is set when actual camshaft position is too much retarded or advanced than full retard position or full advance position. To continue the adjustment in such case could lead to a damage of the engine by hitting the valves with the piston.

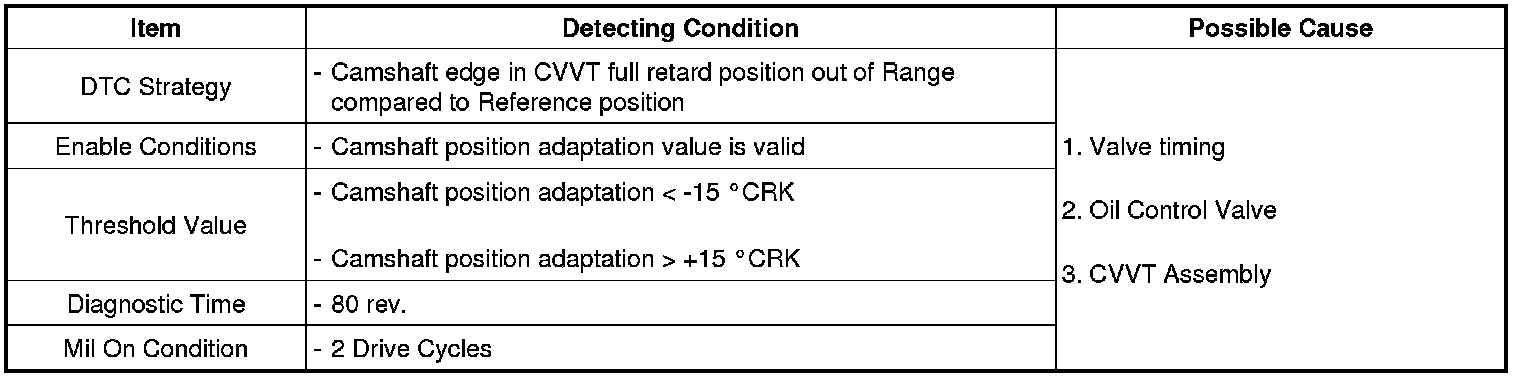

DTC Detecting Condition

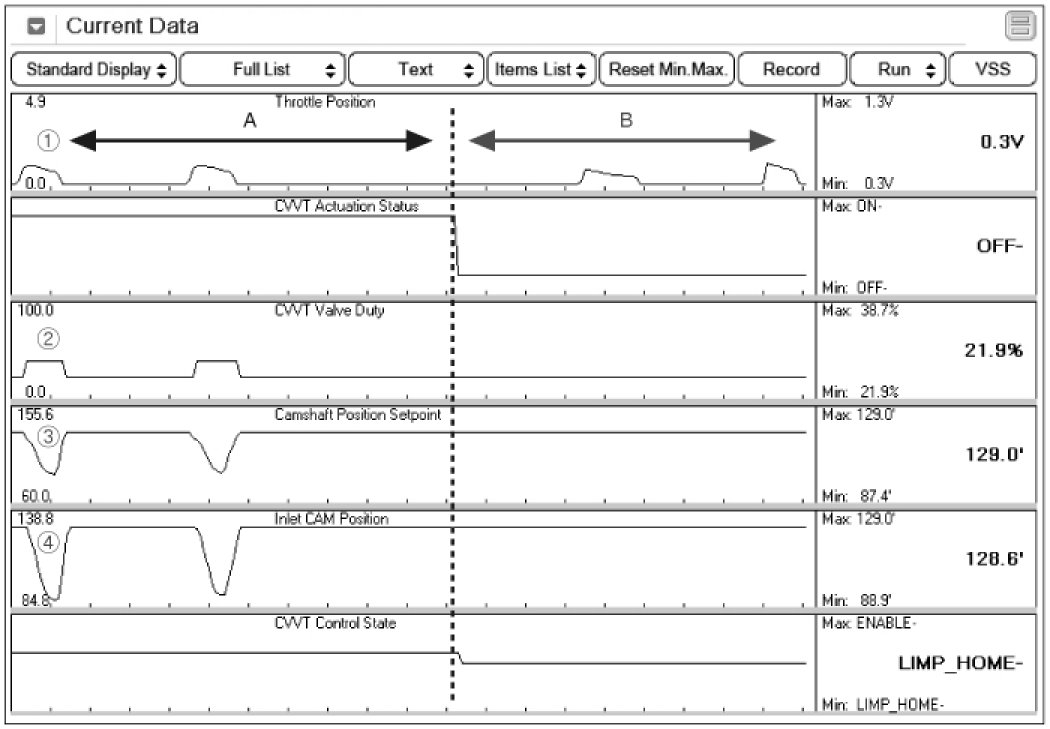

Signal Waveform & Data

1. Connect GDS and select Data Analysis.
2. After warming-up, check following items.




3. Data analysis
> A Sector : CVVT works
> B Sector : Limp Home Mode (CVVT doesn't work.)
> CVVT Control Flow (A Sector)
: Acceleration pedal(1) shift -> Engine RPM change -> Camshaft Position Setpoint (2) change -> CVVT Valve Duty(3) change -> Inlet CAM Position(4) change
