C2412 Motor Short or Open - General Information

Component Location





General Description

The EPS(MDPS=Motor Driving Power Steering) uses an electric motor to provide assistance to the driver while turning the steering wheel.
The EPS CM(Control Module) monitors the current of the motor to determine if there is a fault.

DTC Description

Three phase current of the motor is controlled by three phase voltage.
EPS(MDPS=Motor Driving Power Steering) CM(Control Module) sets this code and inhibits EPS control if these voltage values are different from predefined value.

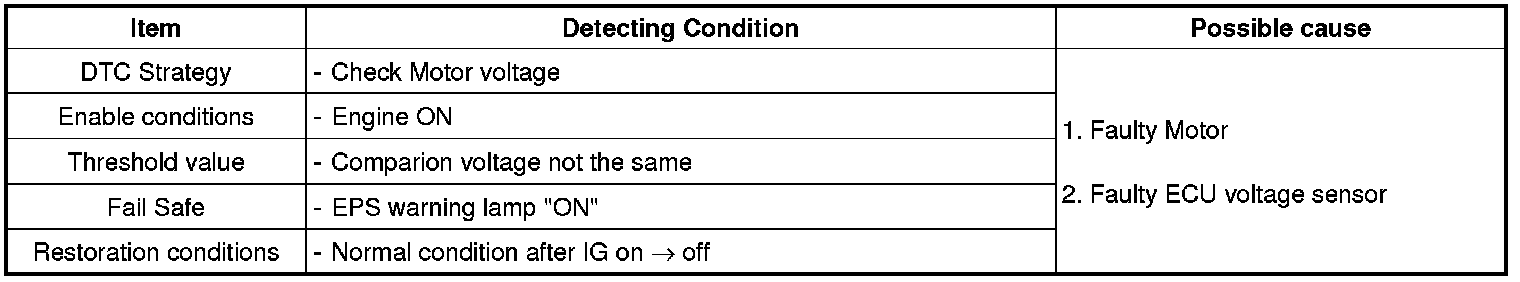

DTC Detecting Condition
