General Information

Electronic Stability Control
C2402 Motor Failure - General Information

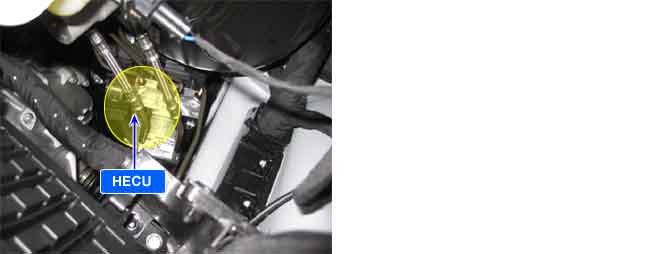

Component Location





General Description

The ABS ECU supplies battery power to the electric motor by way of a motor relay which is controlled by the Electronic Control Unit(ECU).
The electric motor pump supplies hydraulic pressure to all wheel brake calipers by operating the piston inside the pump.

DTC Description

The ABS ECU monitors the pump motor relay. If the ECU detects an open or short in the motor circuit, it then sets this code.

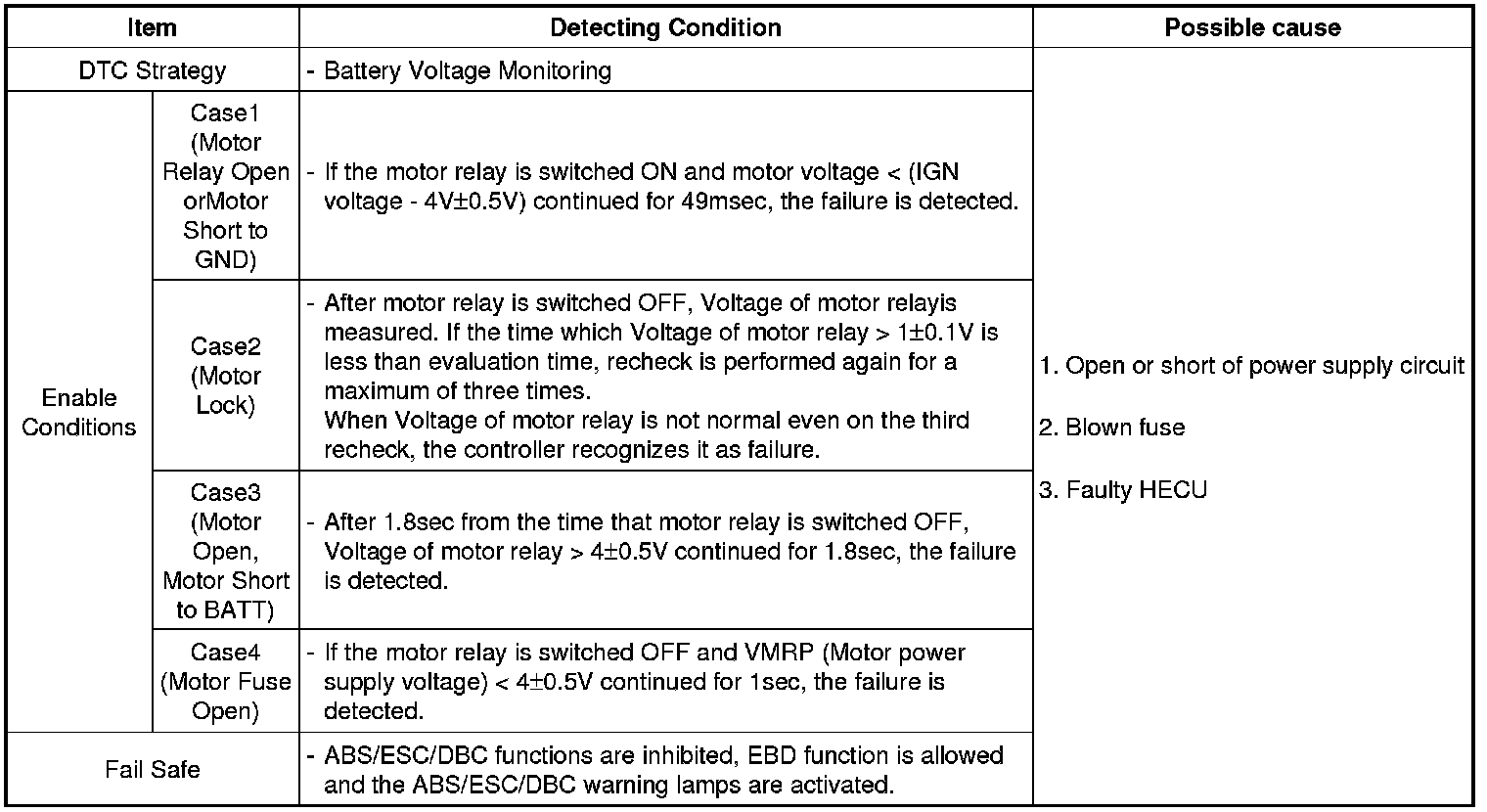

DTC Detecting Condition





Diagnostic Circuit Diagram
