Component Inspection

Electronic Stability Control
C2227 Excessive Temperature Of Brake Disc - Inspection/Repair:_:Component Inspection

Component Inspection

1. Wait until the brake disc sufficiently gets cold.
2. IG "OFF".
3. IG "ON".
4. Connect GDS and select "Diagnostic Trouble Codes(DTCs)" mode
5. Using a GDS, Clear DTC.
6. Select "Diagnostic Trouble Codes(DTCs)" mode again.

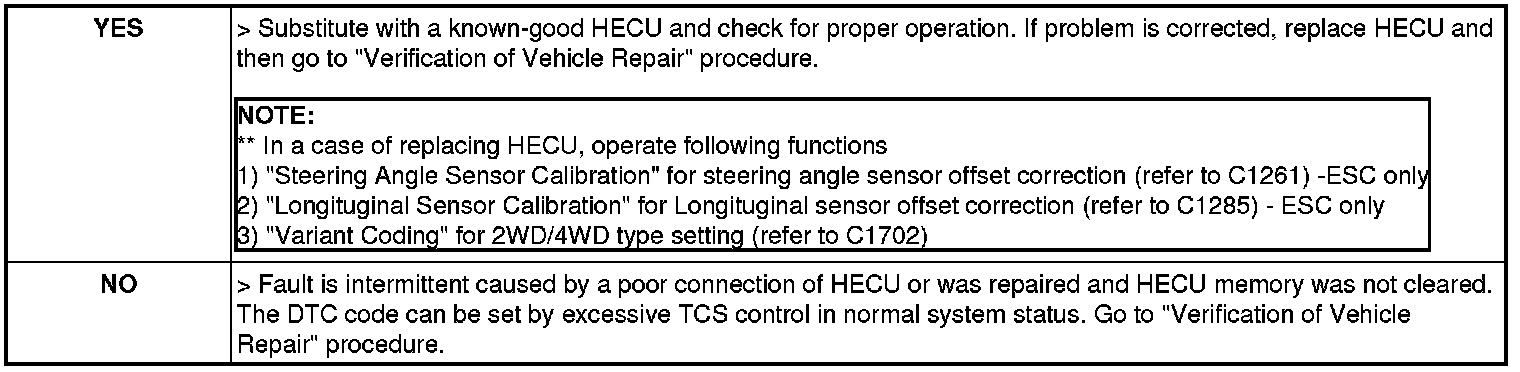

7. Are any DTCs present ?
