W/Harness Inspection

Electronic Stability Control
C2112 Valve Relay Error - Inspection/Repair:_:W/Harness Inspection

Terminal and Connector Inspection

1. Many malfunctions in the electrical system are caused by poor harness(es) and terminals. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
2. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
3. Has a problem been found?






Power Circuit Inspection

Open or Short Check
1. Ignition "ON" & Engine "OFF".

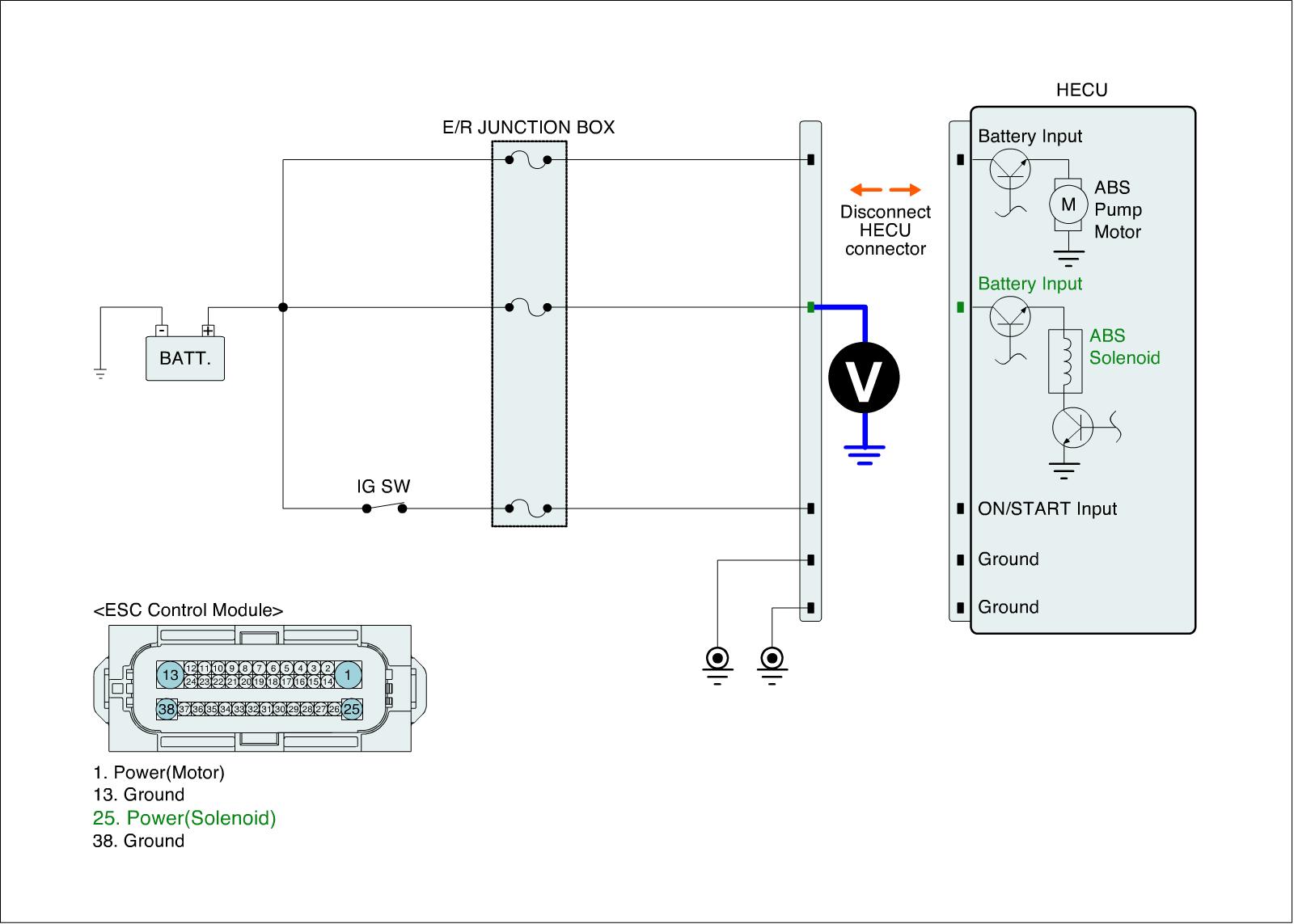

2. Measure voltage between valve relay power terminal of the HECU harness connector and chassis ground.

Specification :Approx. B+




3. Is the measured value within specifications?






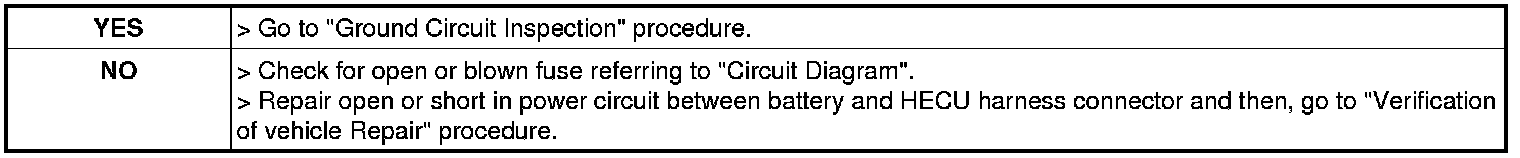

Ground Circuit Inspection

Open or Short Check
1. Ignition "OFF" & Engine "OFF".
2. Disconnect the HECU connector.
3. Measure resistance between ground terminal of the HECU harness connector and chassis ground.

Specification :Approx. below 1Ohms




4. Is the measured value within specifications?
