General Information

Power Steering
C1705 ECU Precharge Circuit Fault - General Information

Component Location





General Description

EPS(MDPS=Motor Driving Power Steering) uses an electric motor to provide directional contol to the driver. EPS Control Module has a charging circuit to supply current to a motor temoporarily.

DTC Description

EPS(MDPS=Motor Driving Power Steering) Control Module sets this code and turns on warning lamp if charged voltage is too low due to a abnormal charging circuit. At that time EPS Control Module inhibits it's own function.

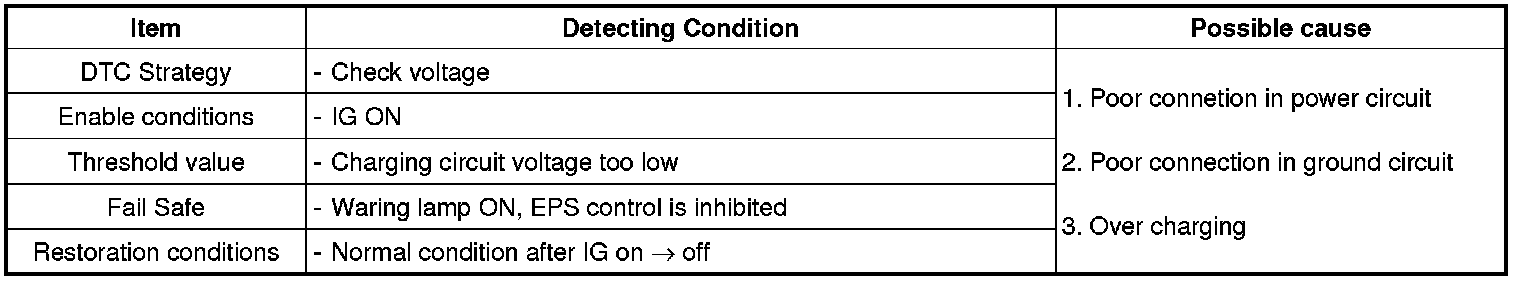

DTC Detecting Condition





Specification





Diagnostic Circuit Diagram
