Scantool Diagnostics

Power Steering
C1702 Variant Coding Error - Scantool Diagnostics

Monitor Scantool Data

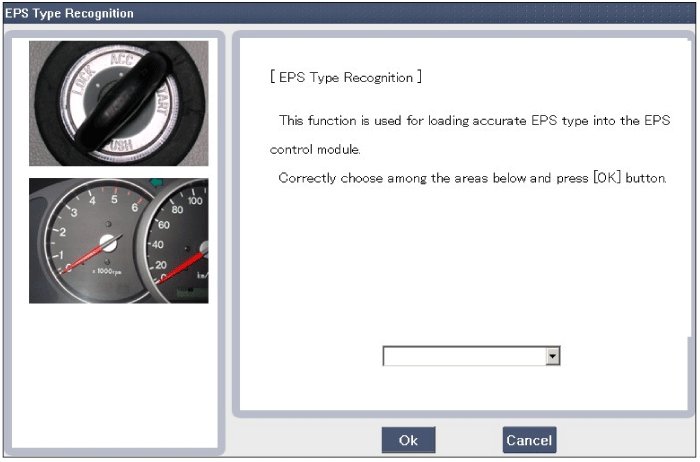

EPS Type recognition
1. Connect scantool to Data Link Connector(DLC)
2. Ignition "OFF" and then Ignition "ON".
3. Choose the area type (figure 1).
4. Ignition "OFF" & Wating 20sec.
5. Ignition "ON".
6. Select "Diagnostic Trouble Codes(DTCs)" mode again.

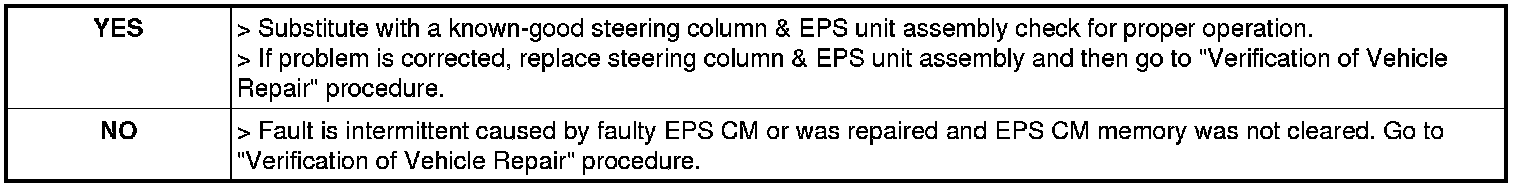

7. Are any DTCs present ?
