General Information

Electronic Stability Control
C1702 Variant Coding Error - General Information

Component Location





General Description

The Electronic Stability Control (ESC) system recognizes a critical driving condition with the Yaw-rate sensor, Lateral acceleration sensor and Steering angle sensor. The ESC stabilizes the vehicle by a individual wheel braking and engine torque control through CAN communication.

DTC Description

The HECU checks variant code and if an inappropriate variant code or no variant code is detected, this DTC is set.

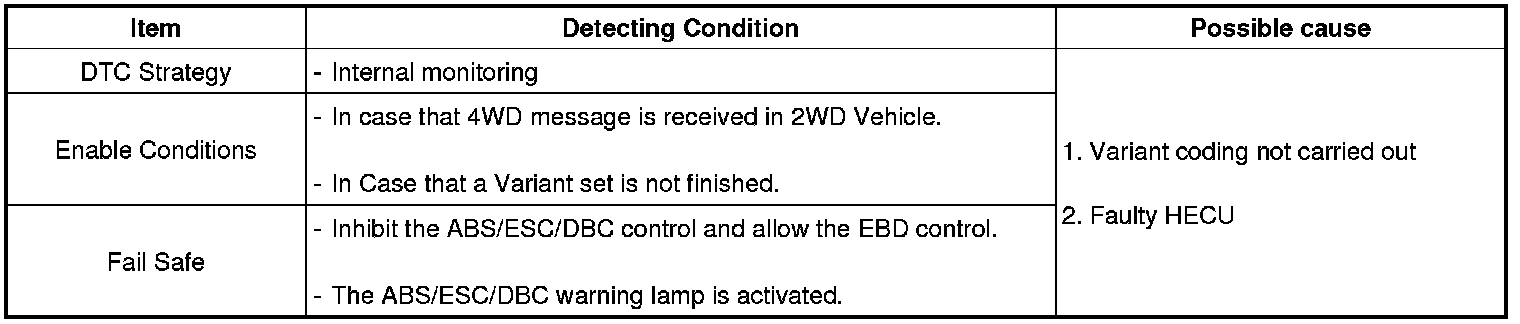

DTC Detecting Condition
