General Information

Power Steering
C1693 CAN Signal Error VSM - General Information

Component Location





General Description

The ABS(VDC) ECM checks a vehicle driving status, a road status, and a steering status. And then it operates VSM(vehicle safety management) system). The integrated control of ABS(VDC) and MDPS makes a vehicle's driving safety improve more and more.

DTC Description

The EPS(MDPS=Motor Driving Power Steering) ECU sets this DTC if it has gotten abnormal data from ABS(VDC) ECM.

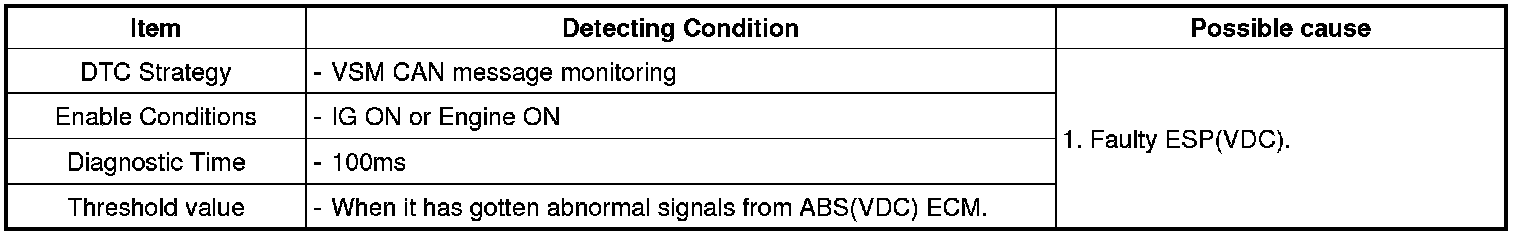

DTC Detecting Condition





Diagnostic Circuit Diagram
