C1692 CAN Time-out VSM - Scantool Diagnostics

Monitor Scantool Data

1. Connect scantool to Data Link Connector(DLC)
2. Engine start and drive the vehicle on the road.
3. Monitor the "VSS and RPM" parameters on the scantool.
(Check the data of EPS with ECM system and confirm output values related to CAN communication.)

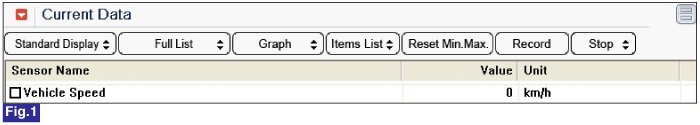

Fig.1) Engine "ON"
4. Is parameter displayed within specifications?
