General Information

Power Steering
C1692 CAN Time-out VSM - General Information

Component Location





General Description

VSM(vehicle safety management) receives a steering torque amount that is calculated by VDC ECU and VSM output signal. Then, check for VSM output signal along with a steering torque piling method to pile up with the amount VSM suggests.

DTC Description

The EPS(MDPS=Motor Driving Power Steering) UNIT sets DTC C1692 if it doesn't receive VSM(vehicle safety management) signals from ABS(ESP) ECM.

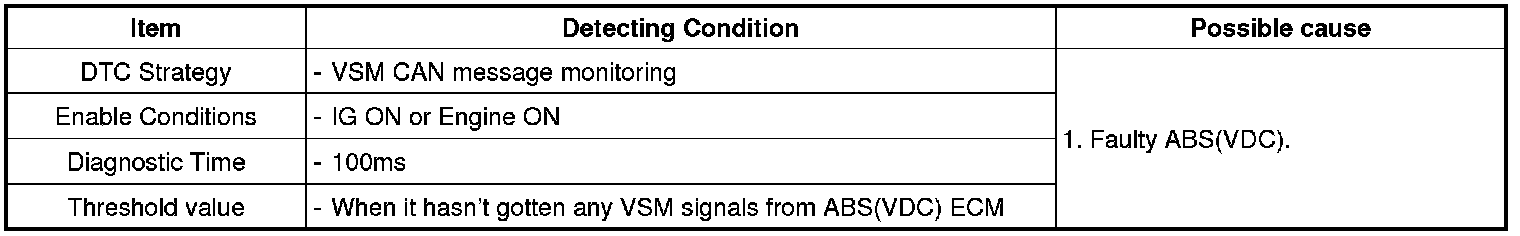

DTC Detecting Condition

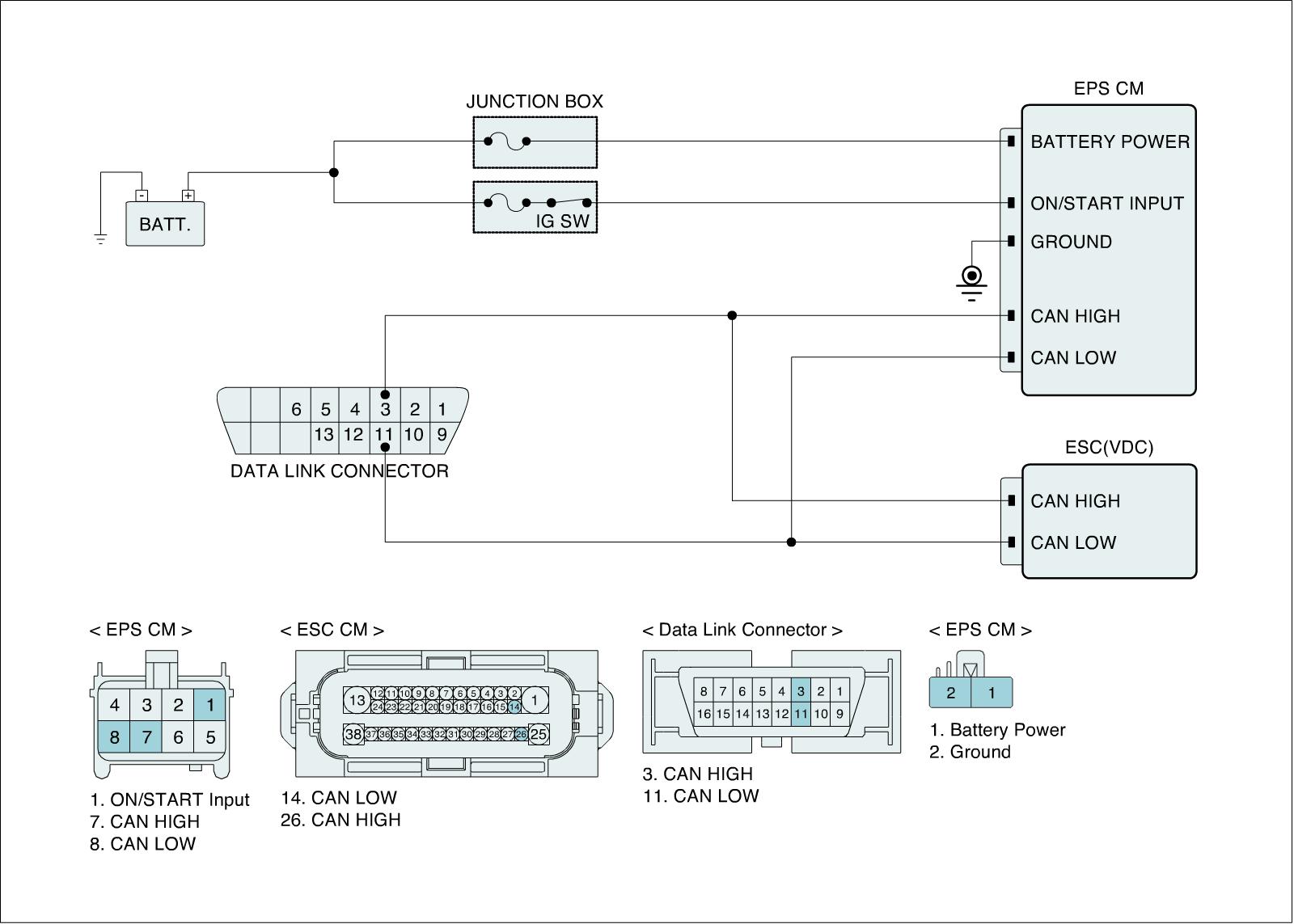

Diagnostic Circuit Diagram
