General Information

Tire Pressure Monitoring
C1661 Receiver EEPROM Failure - General Information

Component Location





General Description

The TPMS is the acronym for Tire Pressure Monitoring System. This system monitors the pressure of the tire and when it drops below a certain pressure, the TPMS ECU makes the warning lamp turn on for notifying the driver. This system consists of TPMS ECU(or TPMS Receiver) and TPMS sensors. The TPMS ECU gets signals such as Tire pressure, Tire temperature, Battery status and Sensor ID via RF(Radio Frequency) at a frequency.

DTC Description

This DTC indicates that the receiver has a problem reading or writing to EEPROM. The most likely cause is TPMS Receiver failure.

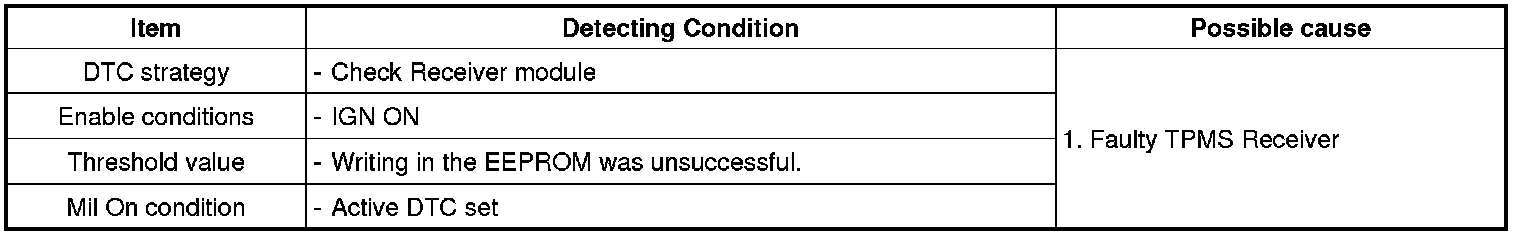

DTC Detecting Condition
