Component Inspection

Tire Pressure Monitoring
C1661 Receiver EEPROM Failure - Inspection/Repair:_:Component Inspection

Component Inspection

1. Set up 'GDS' with 'GDS TPMS'.
2. Select the "TPMS" system.
3. Execute "DTC Analysis" mode and clear DTC.
4. Check the present DTC.

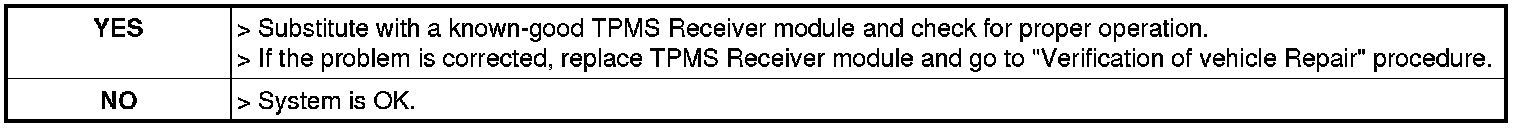

5. Is 'C1661' present ?
