C1616 CAN Bus Off - General Information

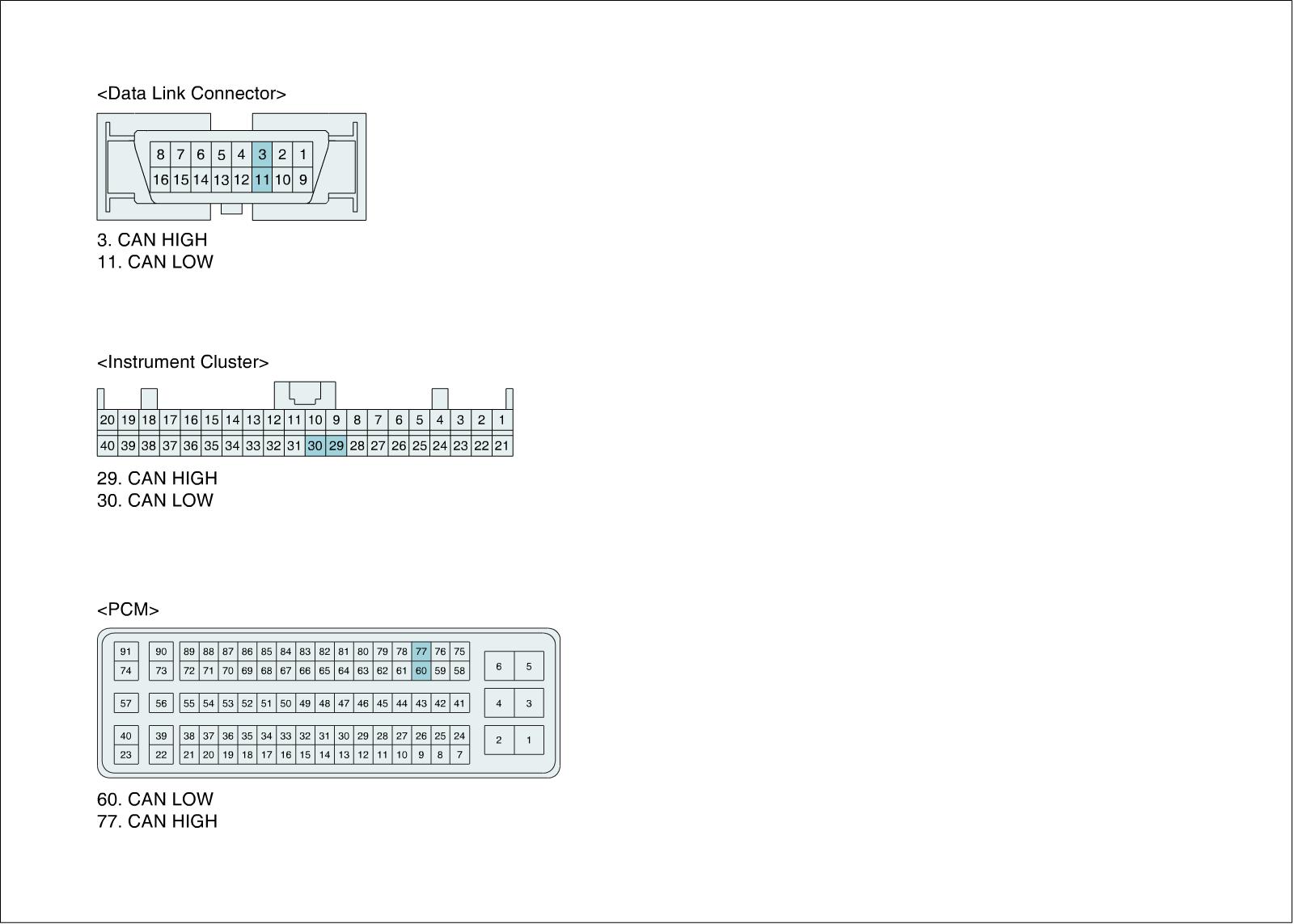

Component Location





General Description

The CAN communication lines have both low and high line. There are also two resister, one in the Cluster and one in the PCM. The CAN system allows communication between control module(PCM, TCM, ABS)

DTC Description

DTC C1616 is set when the TPMS ECU detects a CAN communication error.

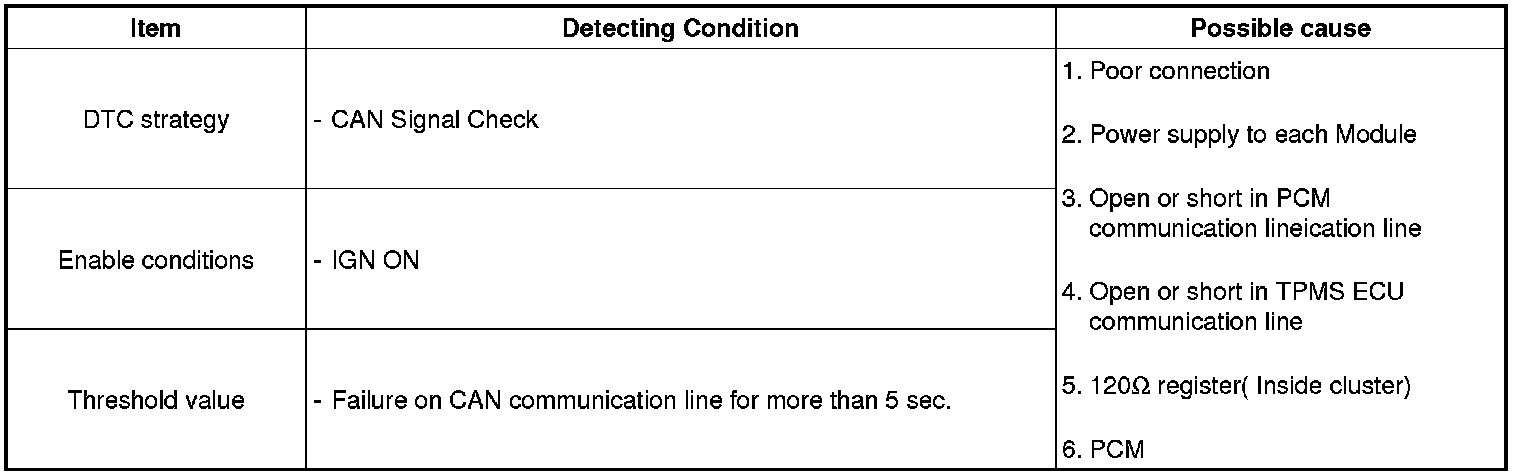

DTC Detecting Condition

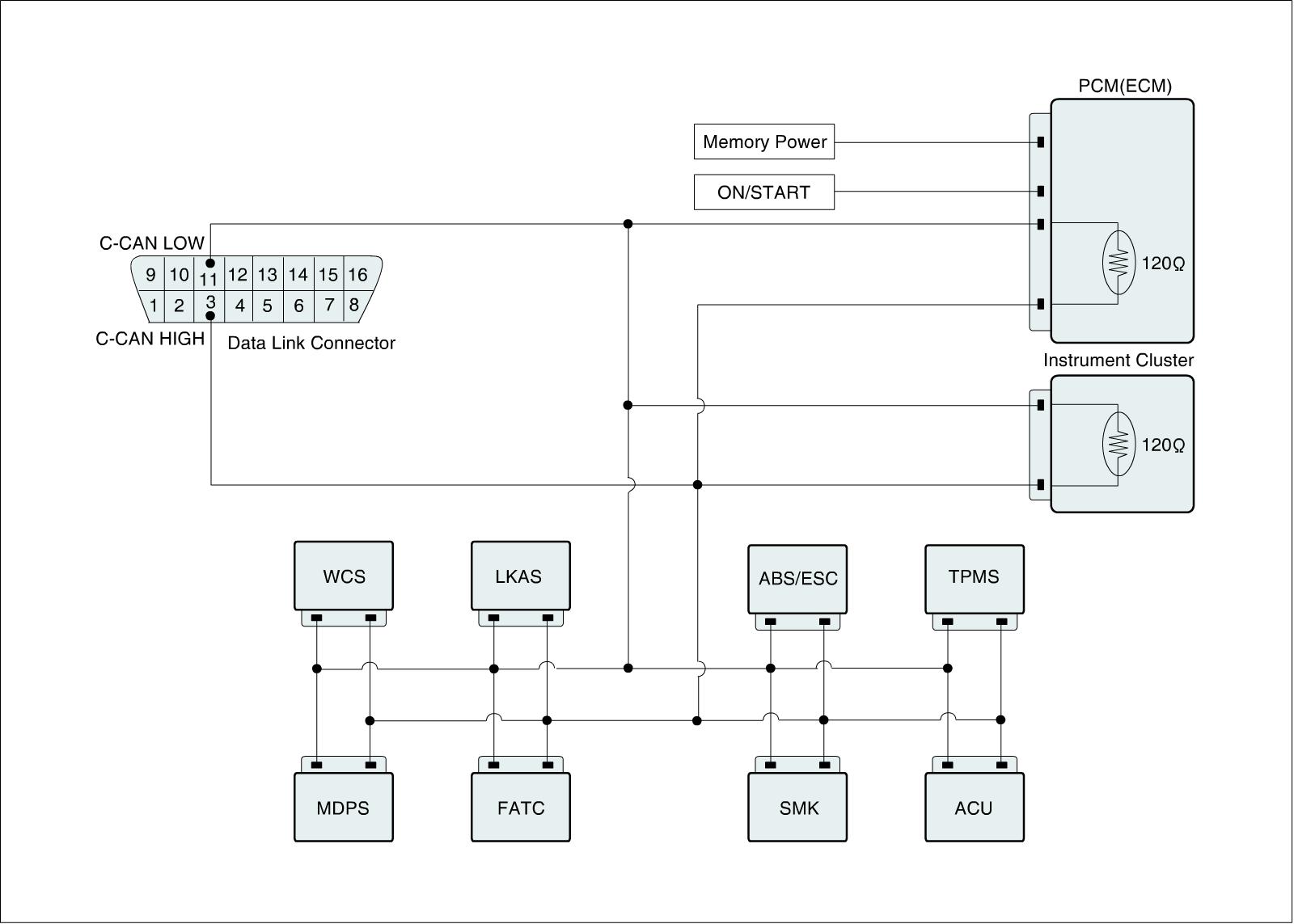

Diagnostic Circuit Diagram

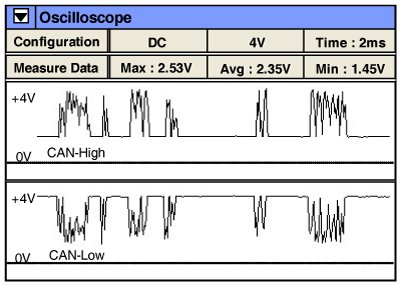

Signal Waveform & Data
