General Information

Electronic Stability Control
C1612 CAN Time-out TCM - General Information

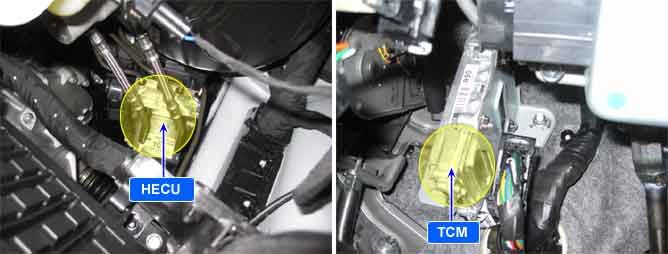

Component Location





General Description

The HECU sends requirement data, such as torque reduction, the number of fuel cut cylinders, and the ESC control request, to the PCM(ECM & TCM) through CAN bus line. The PCM(ECM) performs the fuel cut function according to a request signal from the HECU and then retards an ignition timing. The PCM(TCM) maintains current gear position during the ESC control period in order not to increase power which causes a Kickdown shift.

DTC Description

The HECU checks the CAN communcation lines for the normal ESC control, and sets this code if an TCM message is not received within 500ms.

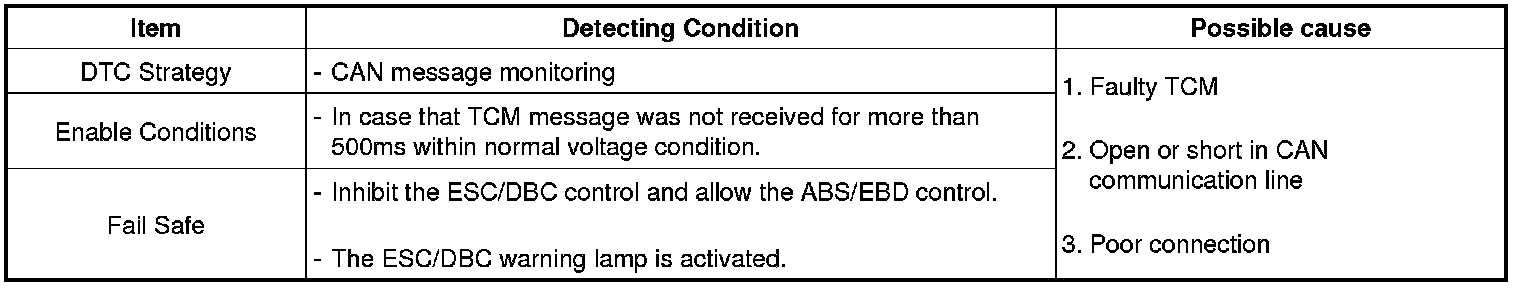

DTC Detecting Condition

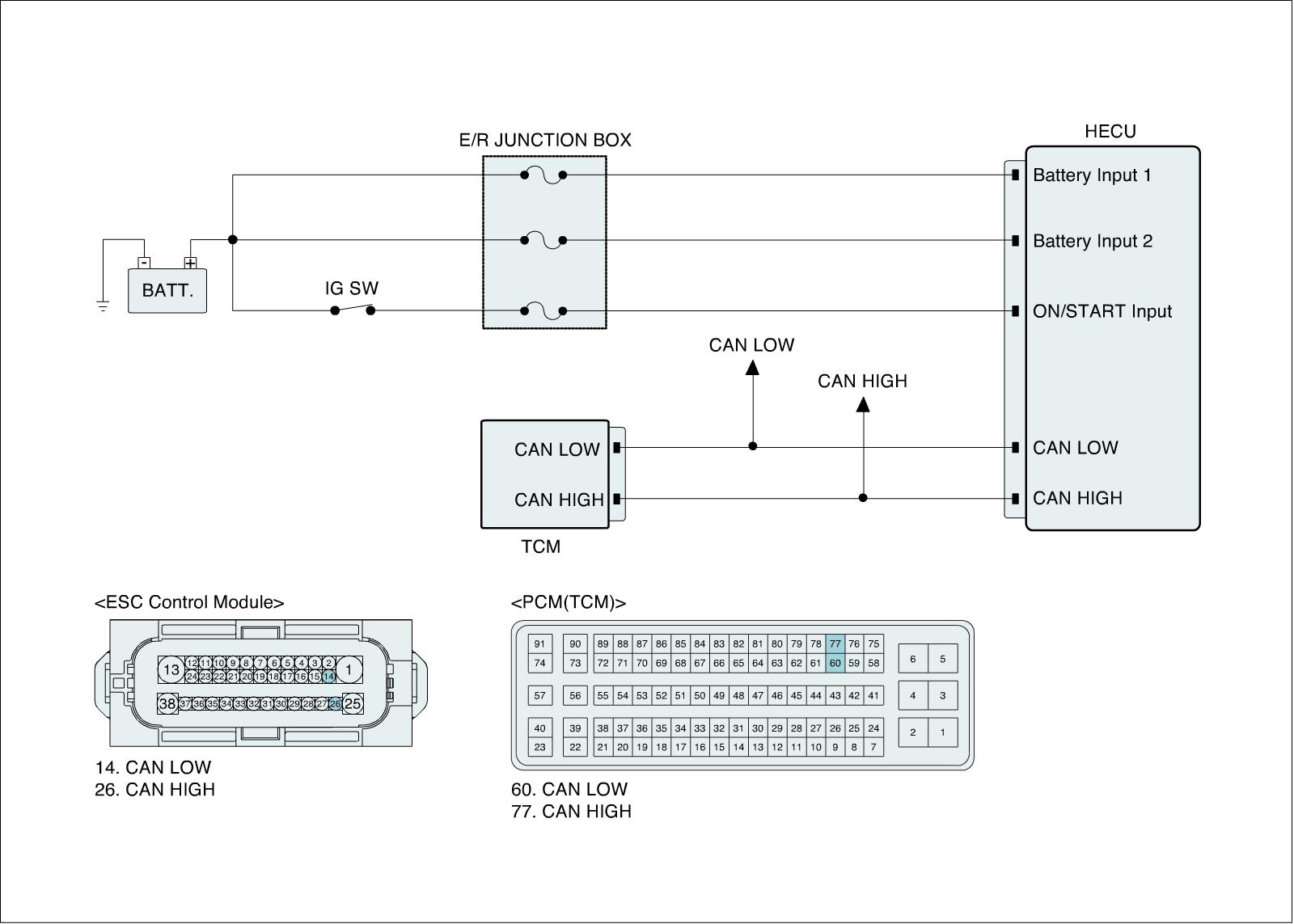

Diagnostic Circuit Diagram
