Scantool Diagnosis

Power Steering
C1611 CAN Time-out ECM - Scantool Diagnosis:_:Monitor Scantool Data

Monitor Scantool Data

1. Connect scantool to Data Link Connector(DLC)
2. Ignition "ON" & Engine "ON".
3. Monitor the "VEHICLE SPEED SENSOR" parameters on the Scantool.
4. Drive the vehicle approx watching the speedometer on the instrument panel.




Fig.1) Stand Still (IG ON & ENG ON)

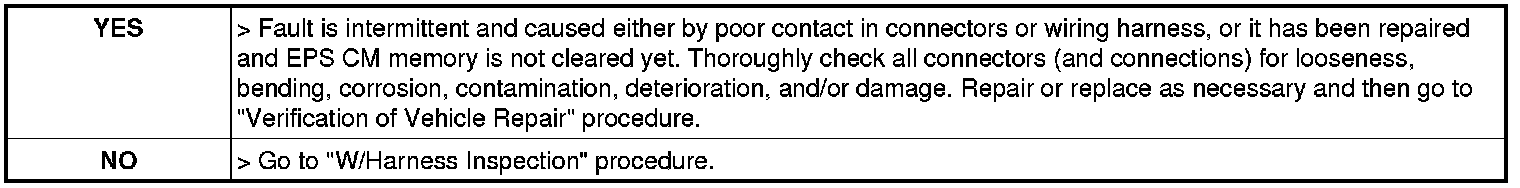

5. Is parameter within specifications?
