General Information

Power Steering
C1611 CAN Time-out ECM - General Information

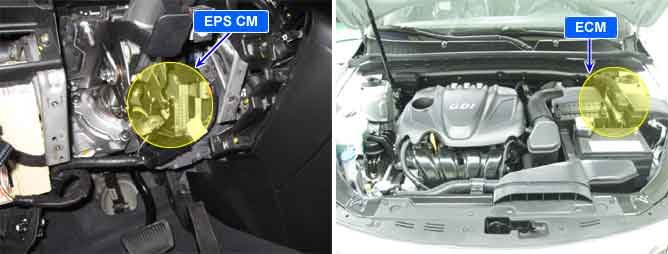

Component Location





General Description

EPS(MDPS=Motor Driving Power Steering) provides a different assist force according to vehicle speed when engine ON. EPS CM receives engine condition and vehicle speed from ECM as EMS1 signal.

DTC Description

EPS(MDPS=Motor Driving Power Steering) Control Module sets this code if EMS1 message is not received within predefined time.

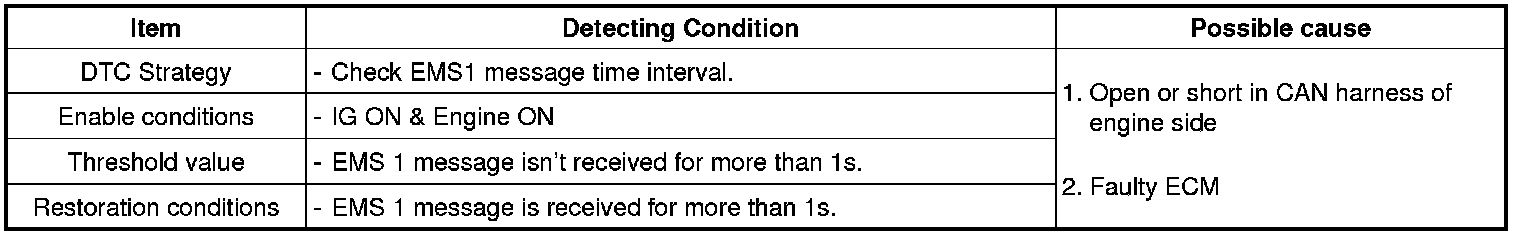

DTC Detecting Condition





Diagnostic Circuit Diagram
