General Information

Power Steering
C1604 ECU Hardware Error - General Information

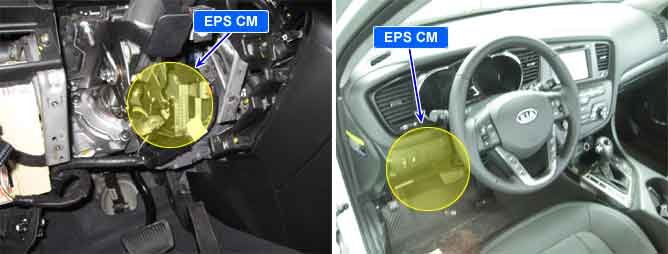

Component Location





General Description

EPS(MDPS=Motor Driving Power Steering) Control Module monitors internal circuit to protect abnormal operation. This test includes hardware (MCU, RAM, ROM and so on) test.

DTC Description

EPS(MDPS=Motor Driving Power Steering) Control Module checks operating condition of H/W periodically. EPS CM (Control Module) sets this code and turns on warning lamp if there is a fault in H/W. At that time EPS CM inhibits EPS opreation.

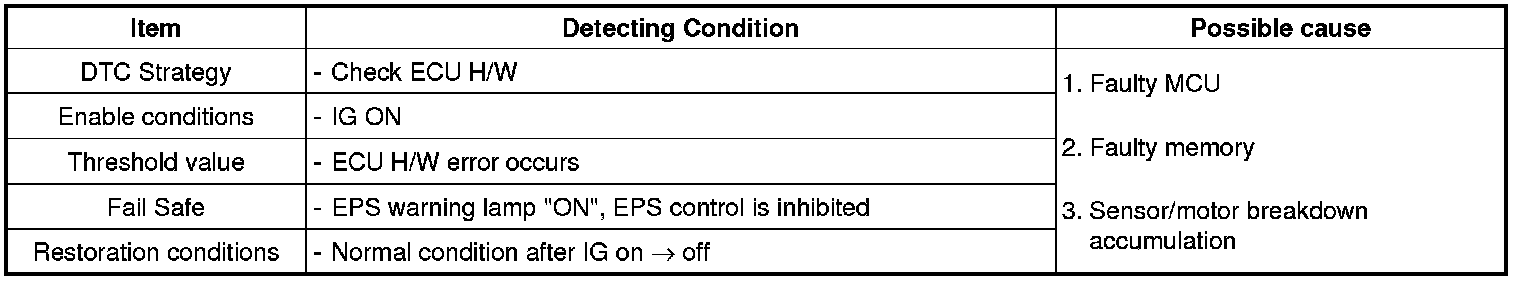

DTC Detecting Condition
