Component Inspection

Electronic Stability Control
C1604 ECU Hardware Error - Inspection/Repair:_:Component Inspection

Component Inspection

1. IG "OFF".
2. IG "ON".
3. Connect GDS and select "Diagnostic Trouble Codes(DTCs)" mode.
4. Using a GDS, Clear DTC.
5. Select "Diagnostic Trouble Codes(DTCs)" mode again.

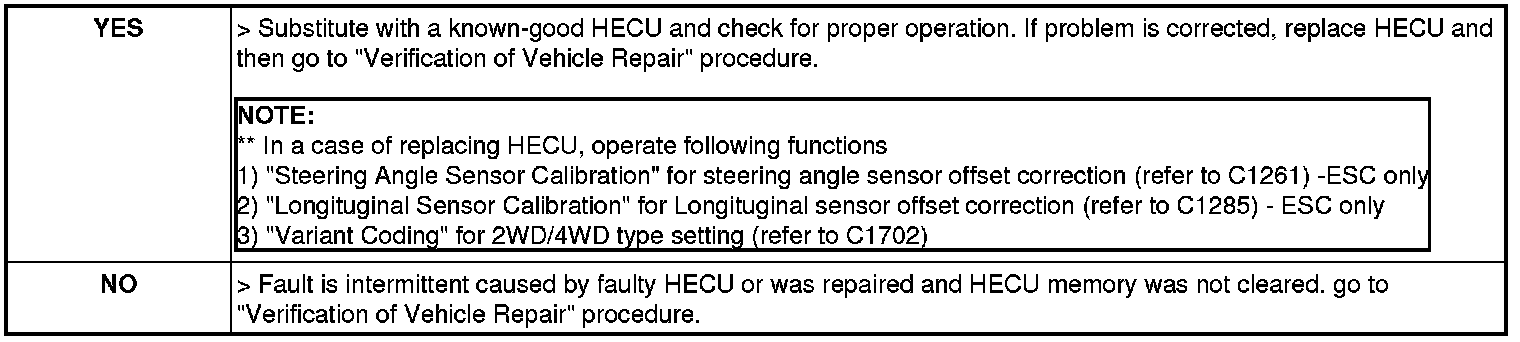

6. Are any DTCs present ?
