General Information

Electronic Stability Control
C1527 Gear R Switch Error - General Information

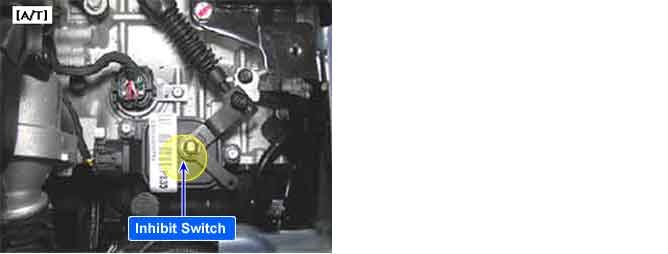

Component Location





General Description

The clutch switch is used for the Hill start Assist Control function.

DTC Description

If the wrong reverse gear signal has been set for a certain period of time, a failure is recognized.
[A/T] HECU receives reverse gear switch signal from TCM via C-CAN.
[M/T] Cluster receives back up lamp signal from IPS(Intelligent Power Switch System) via B-CAN and sends it to HECU via C-CAN.

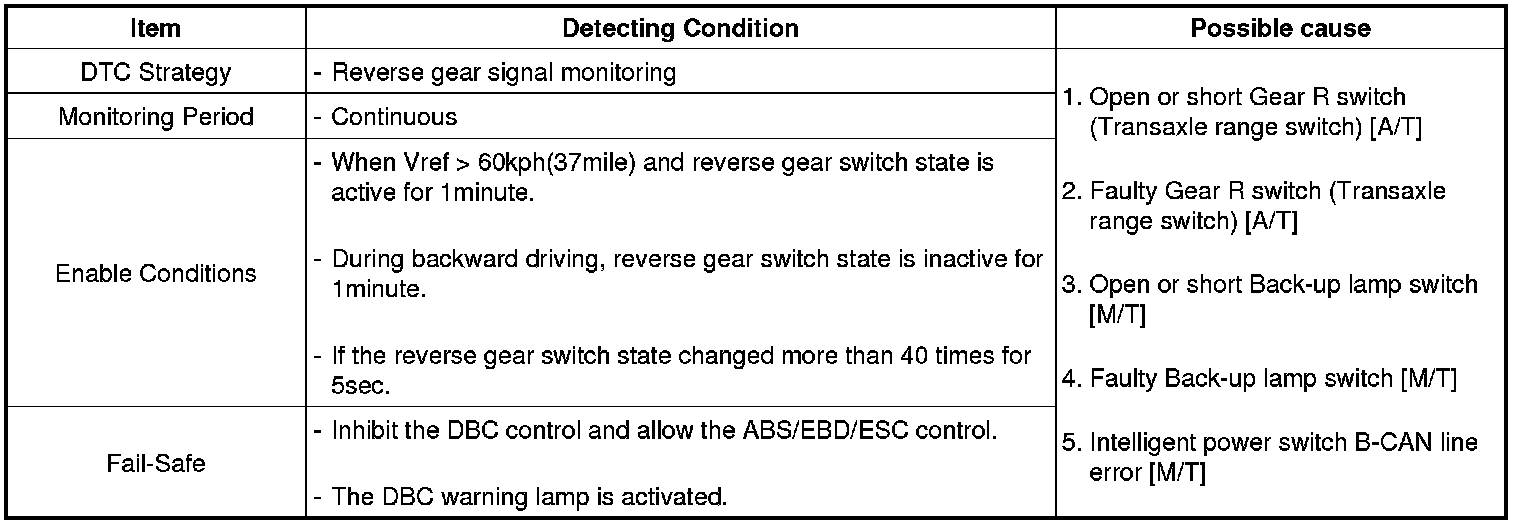

DTC Detecting Condition

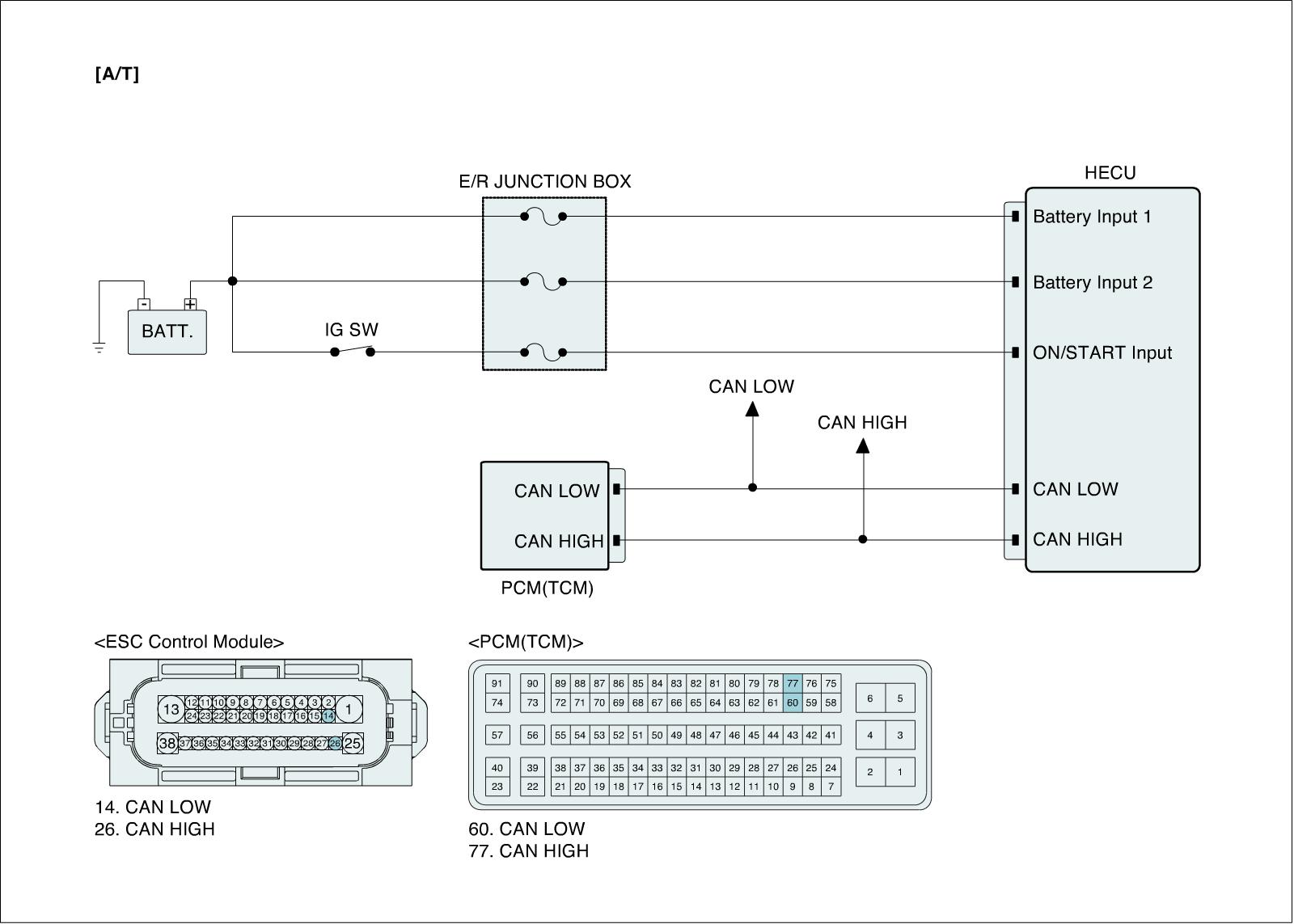

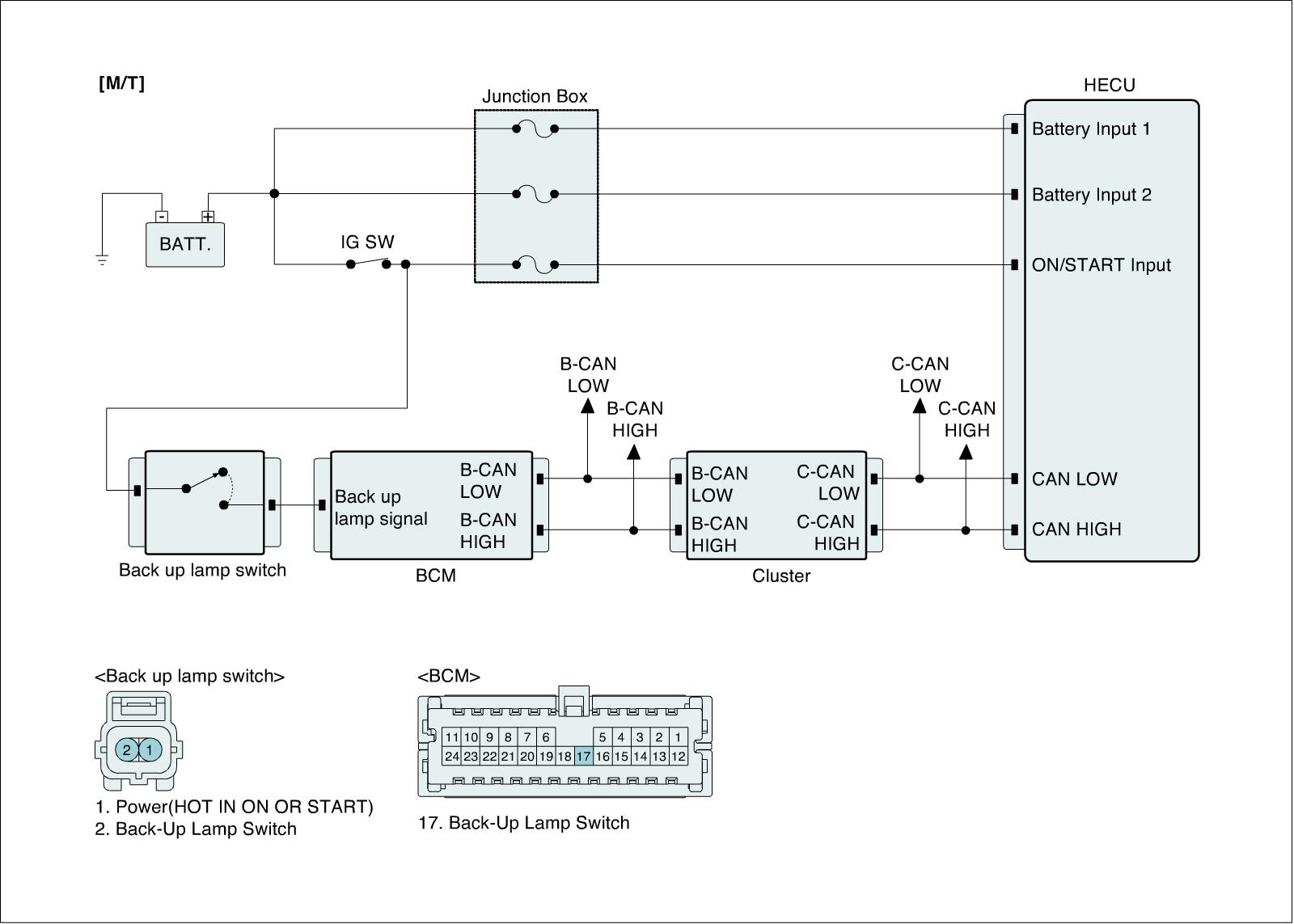

Diagnostic Circuit Diagram
