Electronic Stability Control
C1527 Gear R Switch Error - Inspection/Repair:_:Component Inspection

Component Inspection

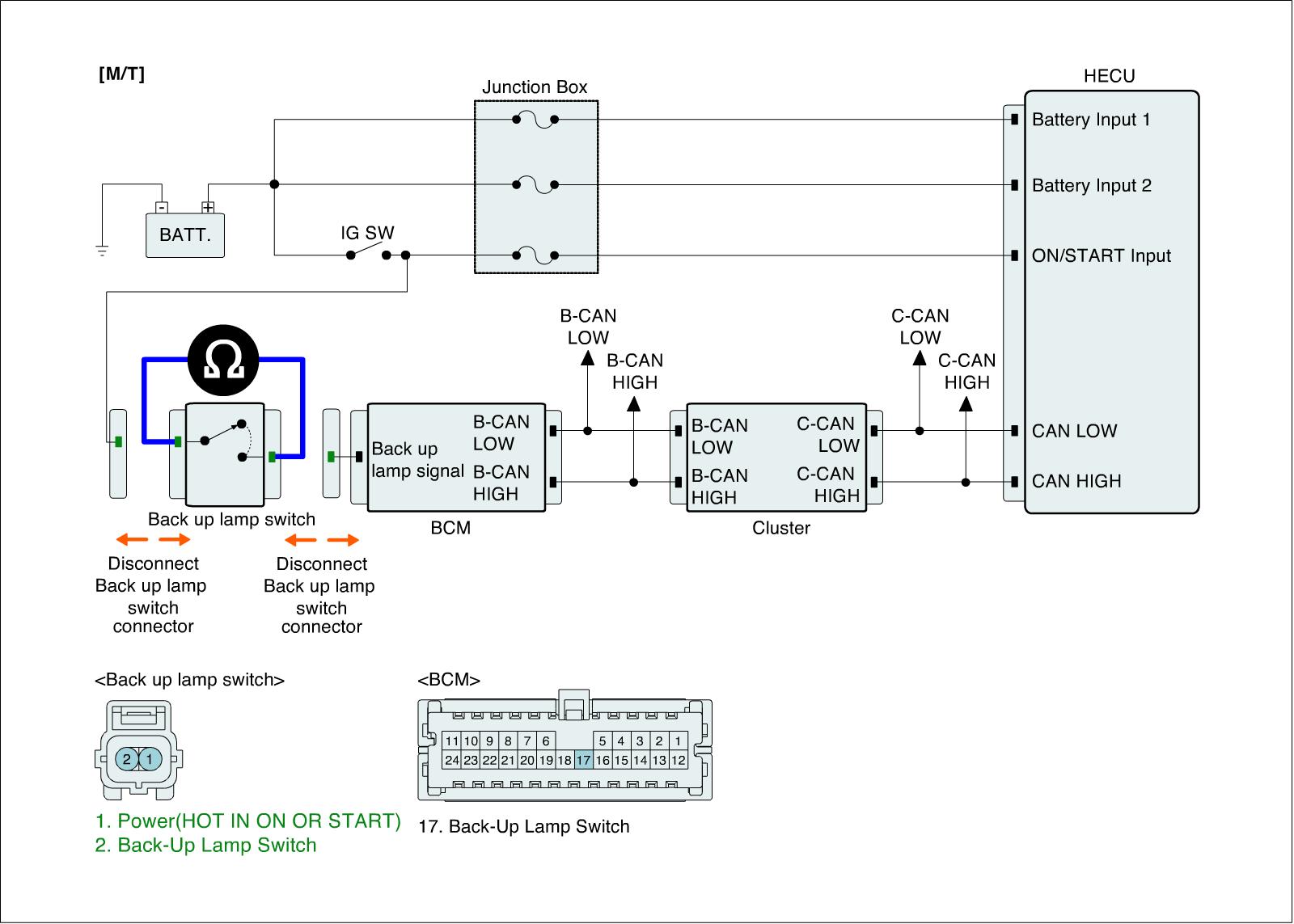

Back Up Switch Check
1. IG OFF.
2. Disconnect the back up switch connector.
3. Measure resistance between ground terminal and signal terminal of the back up switch connector.

Specification :Approx. below 1Ohms (In case of pressing the back up switch)
Approx. Infinity Ohms (In case of not pressing the back up switch)

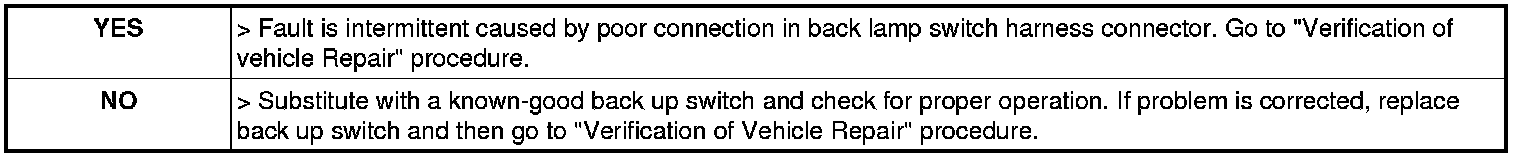

4. Is the measured value within specifications?
