Scantool Diagnostics

Auto Headlamp Leveling
C1522 Head lamp Switch Fault - Scantool Diagnostics

Scantool Diagnostics

1. Connect scantool with Diagnostic Connector.
2. Engine "ON" and Turn on the auto head light system.
3. Check "HEAD LAMP status" parameter on Scantool.

Specification :When Head Lamp is ON : "ON"

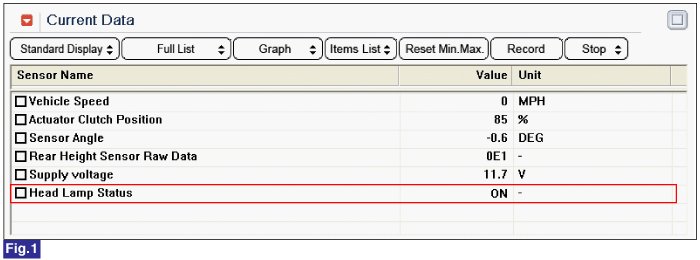

Fig.1) AHLS Current Data(Head Lamp status)

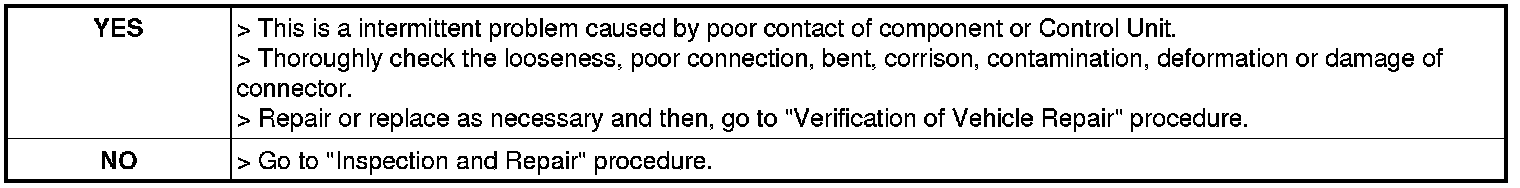

4. Is the current data normal ?
