Component Inspection

Electronic Stability Control
C1520 Clutch switch - Inspection/Repair:_:Component Inspection

Component Inspection

Clutch Switch Check
1. IG OFF.
2. Disconnect the clutch switch connector.

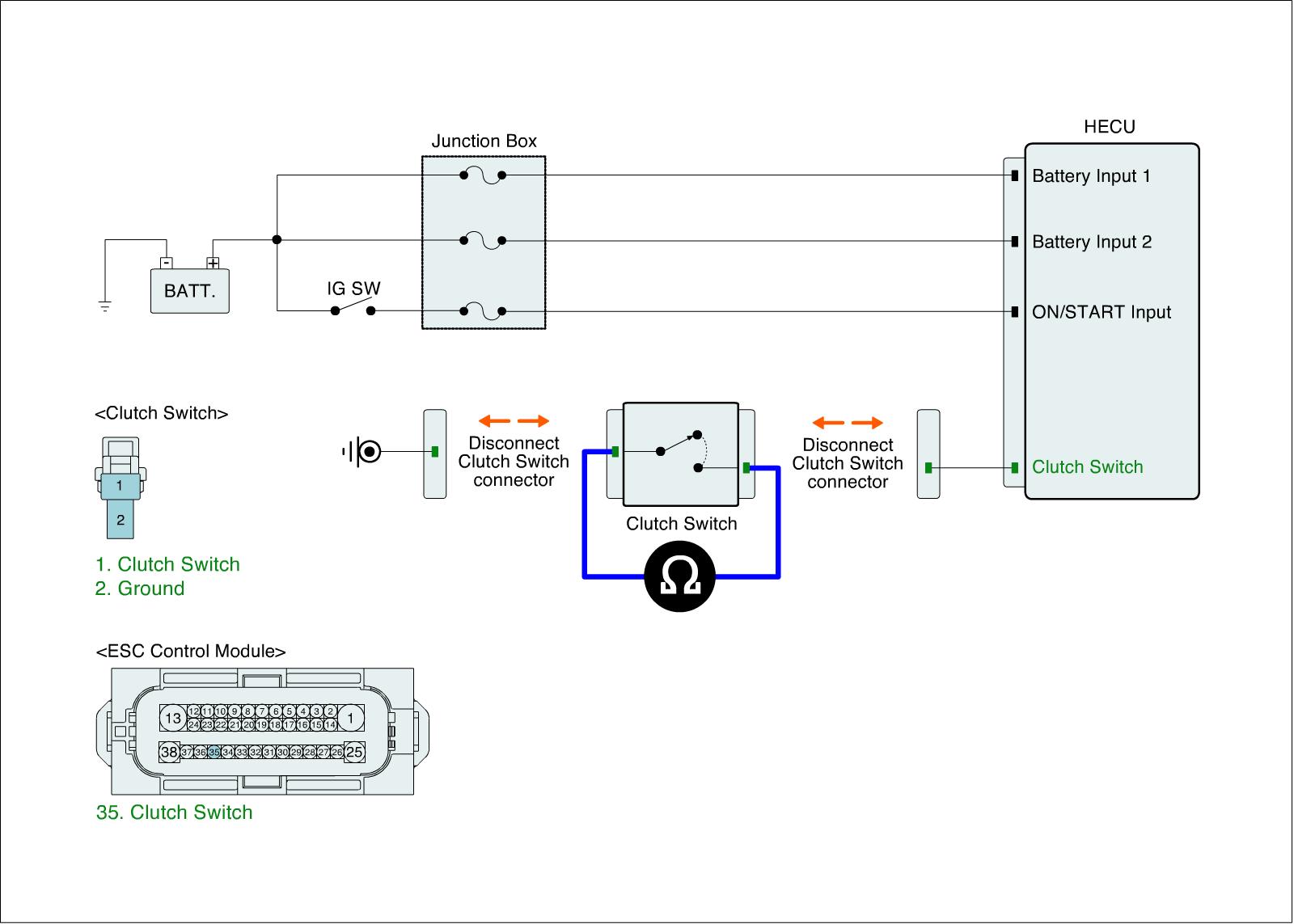

3. Measure resistance between ground terminal and signal terminal of the clutch switch connector.

Specification :Approx. below 1Ohms (In case of pressing the clutch switch)
Approx. Infinity Ohms (In case of not pressing the clutch switch)

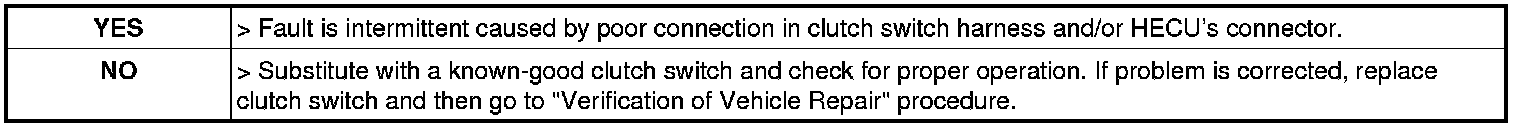

4. Is the measured value within specifications?
