Scantool Diagnostics

Electronic Stability Control
C1513 Brake switch error - Scantool Diagnostics

Monitor GDS Data

1. Connect scantool to Data Link Connector(DLC)
2. IG "ON".
3. Press the brake pedal.

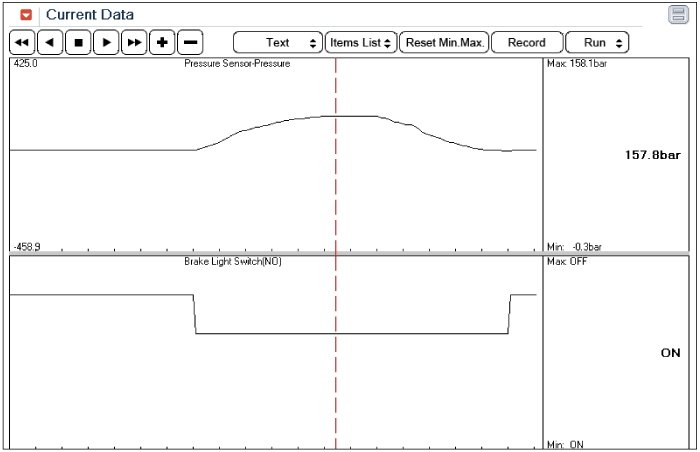

4. Monitor the "Brake Light Switch" parameter on the GDS.

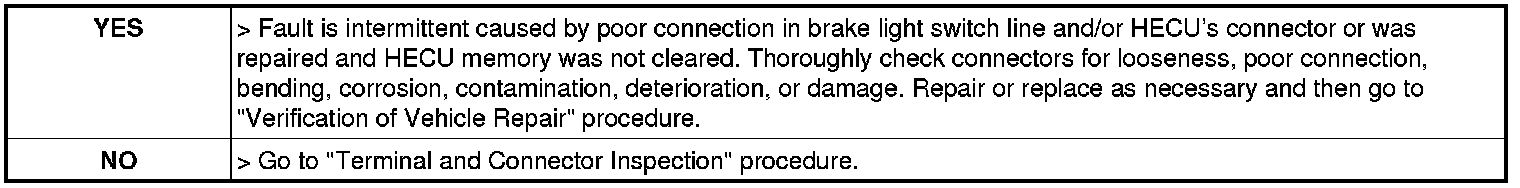

5. Whenever Brake pedal is pushed down, is the brake lamp switch's GDS data changed ON/OFF?
