C1513 Brake switch error - General Information

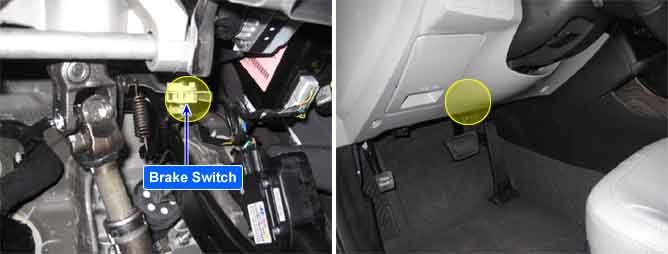

Component Location





General Description

This switch is mounted on the pedal assembly and is used to send the status of the brake pedal to the HECU. There are two separate switches in the switch housing. The Brake Switch is normally closed while the Brake Light Switch is normally open.

DTC Description

The HECU checks for open or shorted circuits of the brake switch.
If an error is present, the warning lamp will illuminate.

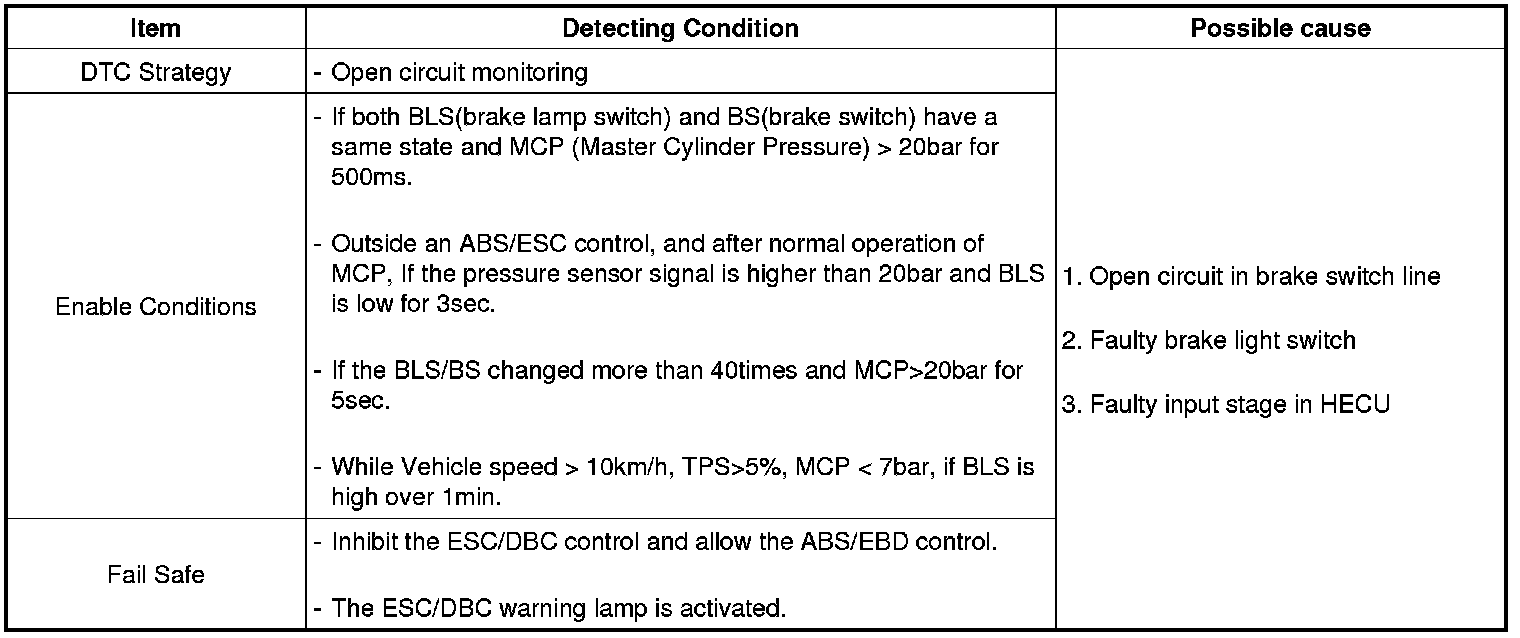

DTC Detecting Condition





Specification

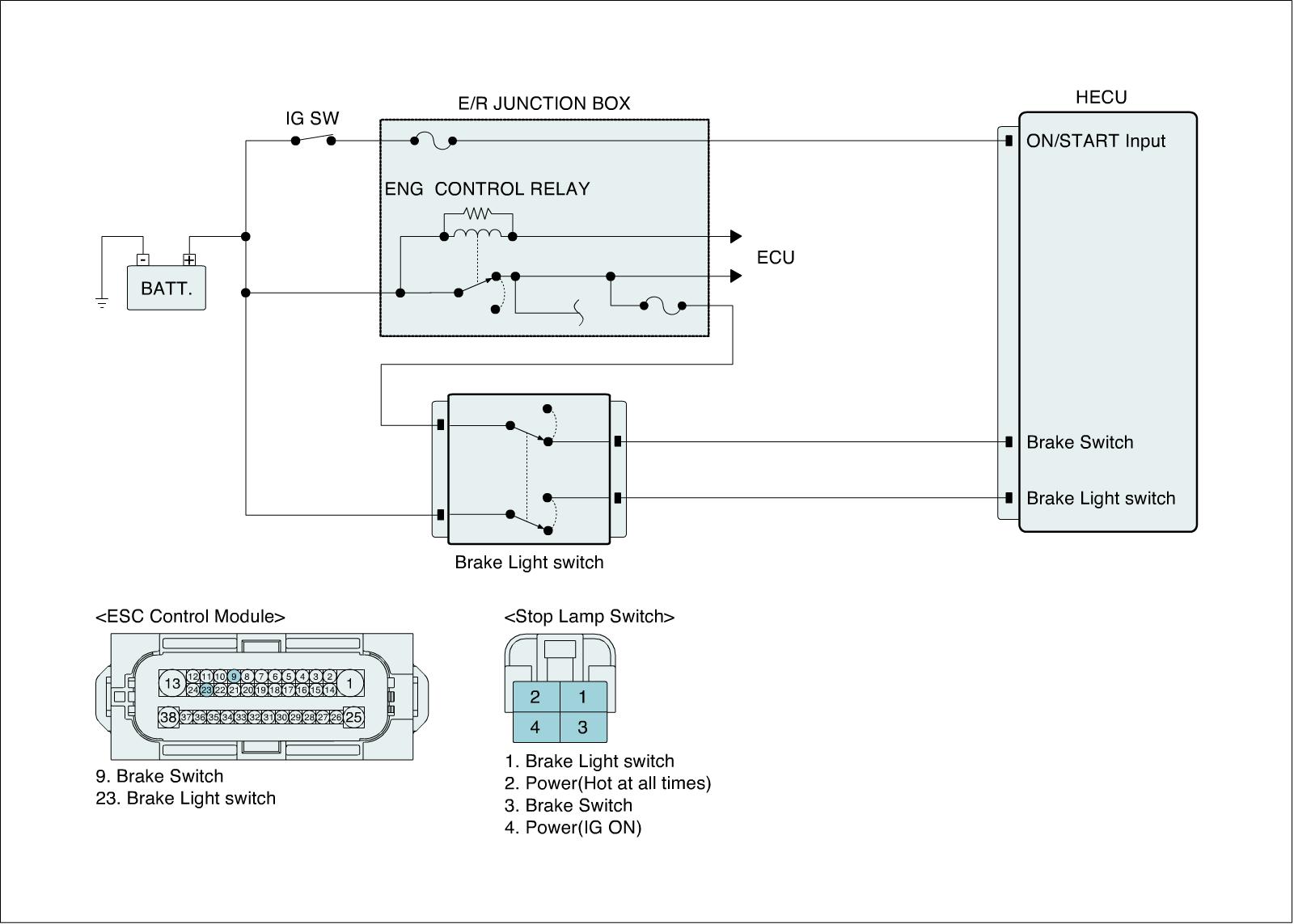

Diagnostic Circuit Diagram
