Component Inspection

Electronic Stability Control
C1513 Brake switch error - Inspection/Repair:_:Component Inspection

Component Inspection

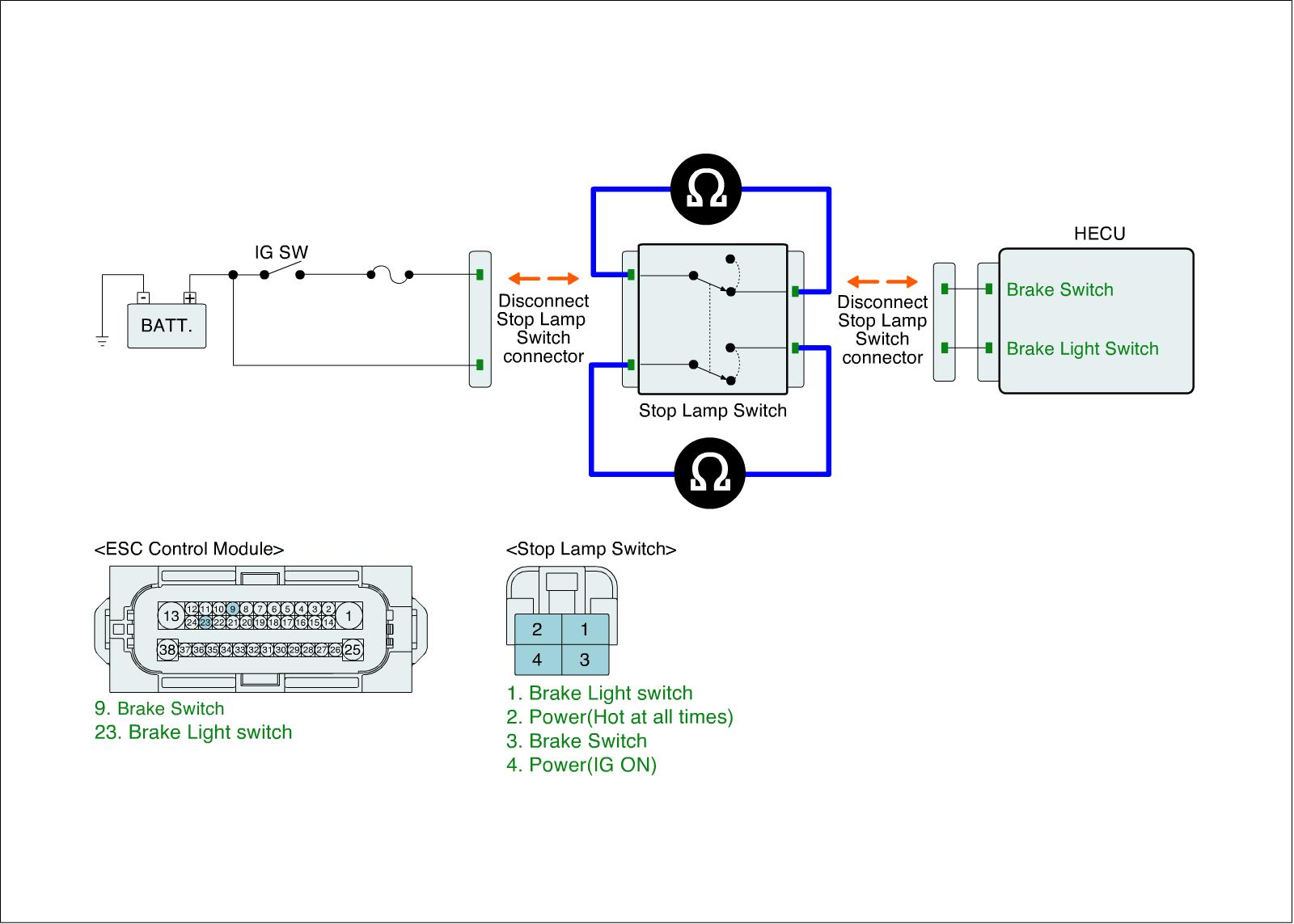

Brake light switch Check
1. IG "OFF".
2. Disconnect the brake light switch connector.
3. Measure resistance between power terminal and siganl terminal of the brake light switch connector.

Specification :
Resistance between terminals of the brake light switch - InfinityOhms (when the plunger is pushed down), 0Ohms (when the plunger isn't pushed down).
Resistance between the terminals of the brake switch - InfinityOhms (when the plunger is not pushed down), 0Ohms (when the plunger is pushed down).

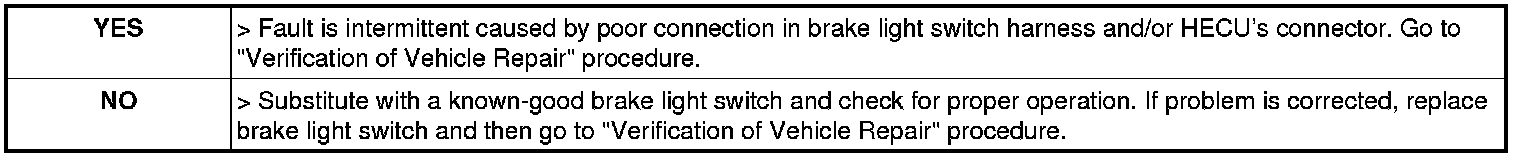

4. Is the measured value within specifications?
