Scantool Diagnostics

Electronic Stability Control
C1503 TCS/ESC(ESP) Switch error - Scantool Diagnostics

Monitor GDS Data

1. Connect GDS to Data Link Connector(DLC).
2. IG "ON".
3. Press the ESC(ESP) SWITCH.

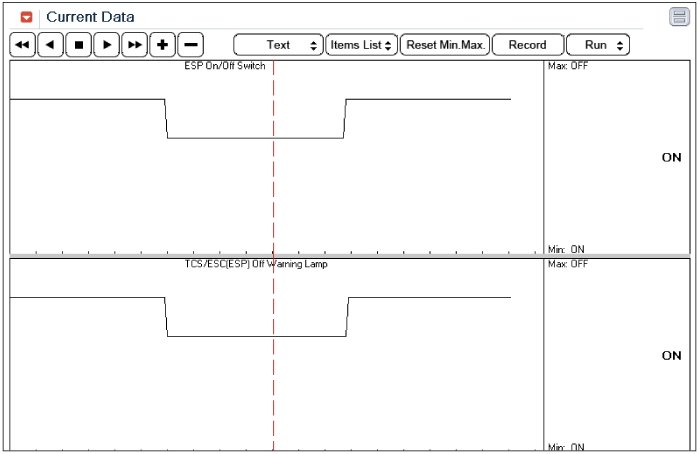

4. Monitor the "ESC(ESP) Off Switch" parameter on the GDS.

Specification :ESC(ESP) switch parameter changed ON / OFF stats.

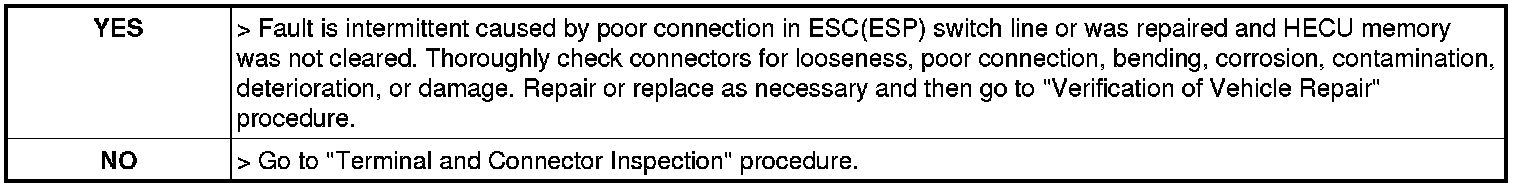

5. Whenever the switch is pushed up/down, is the ESC(ESP) off switch's GDS data changed ON/OFF?
