Component Inspection

Electronic Stability Control
C1503 TCS/ESC(ESP) Switch error - Inspection/Repair:_:Component Inspection

Component Inspection

ESC(ESP) switch Check
1. IG "OFF".
2. Disconnect the ESC(ESP) switch connector.

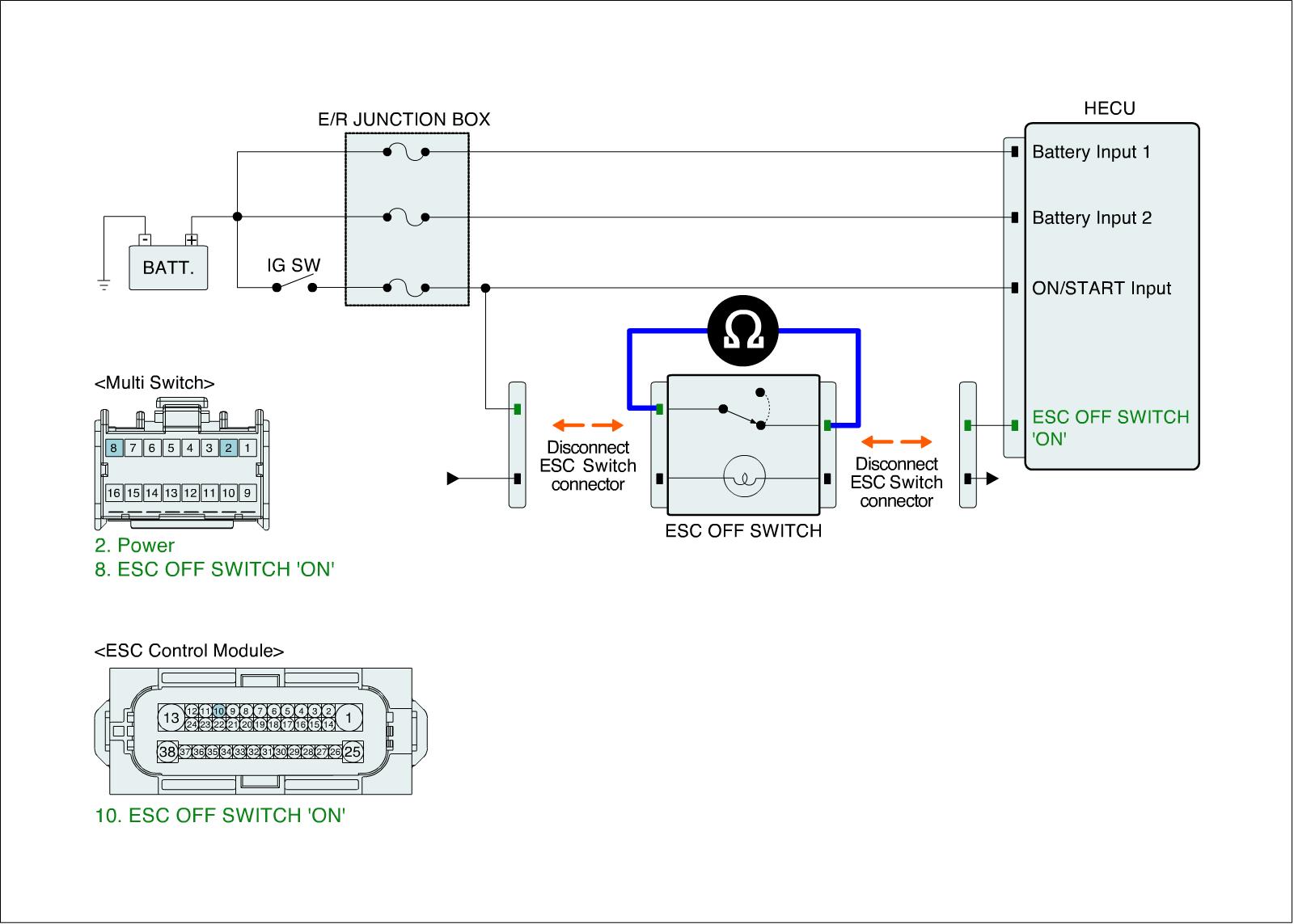

3. Measure resistance between power terminal and siganl terminal of the ESC(ESP) switch connector.
4. Measure waveform between signal terminal of the wheel speed sensor harness connector and chassis ground with osciloscope.

Specification :Approx. below 1Ohms - (In case of pressing the ESC(ESP) switch)
Approx. Infinity Ohms - (In case of not pressing the ESC(ESP) switch)




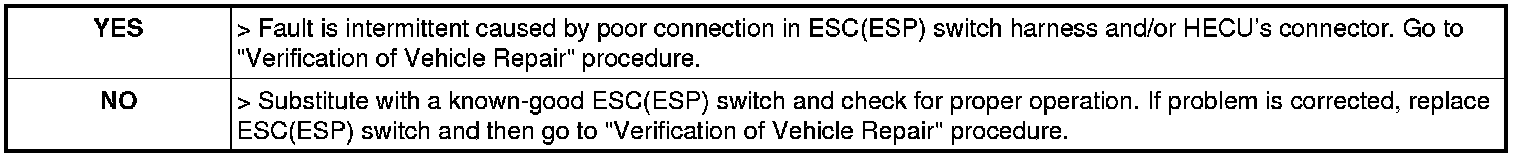

5. Is the measured resistance within specifications?
