Scantool Diagnostics

Tire Pressure Monitoring
C1325 Sensor 4 Over Temperature - Scantool Diagnostics

Monitor GDS Data

1. Set up 'GDS' with 'GDS TPMS'.
2. Select the "Sensor Status" mode of "Vehicle S/W Management" function.
3. Monitor the parameter related to 'Sensor 3' on the GDS.

Specification :'Temperature' is Less than 239°F(115°C)








Fig.1) Data displayed by TPMS Exciter

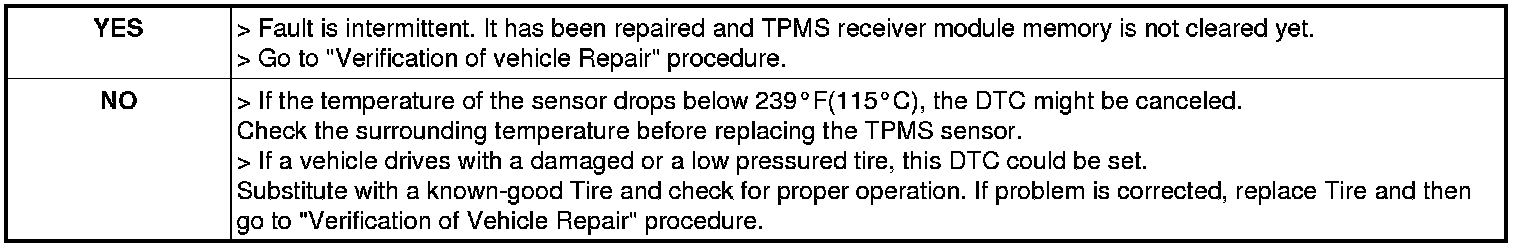

4. Is parameter within specifications?
