Component Inspection

Power Steering
C1290 Torque sensor main signal fail - Inspection/Repair:_:Component Inspection

Component Inspection

1. Ignition "OFF".
2. Ignition "ON" & Engine "OFF".
3. Connect scantool and select "Diagnostic Trouble Codes(DTCs)" mode
4. Using a scantool, Clear DTC.
5. Operate the vehicle within DTC Detecting Condition in General Information. (turn right and left at least 1 time)
6. Select "Diagnostic Trouble Codes(DTCs)" mode again.

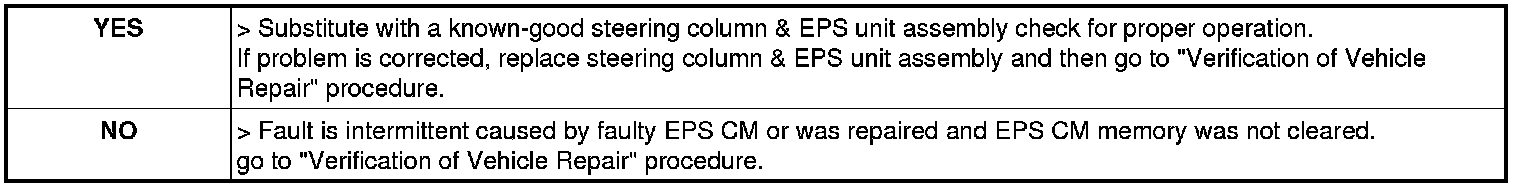

7. Are any DTCs present ?
