Component Inspection

Electronic Stability Control
C1285 Sensor Cluster Change Detection/Uncalibrated - Inspection/Repair:_:Component Inspection

Component Inspection

longitudinal G sensor Calibration
1. IG ON, ENG OFF
2. Stand the vehicle on a flat ground without any inclination.
3. Set the steering wheel at the center position.
4. Keep the vehicle under normal tire pressure condition and normal loading condition.
5. Connect GDS to Data Link Connector(DLC).

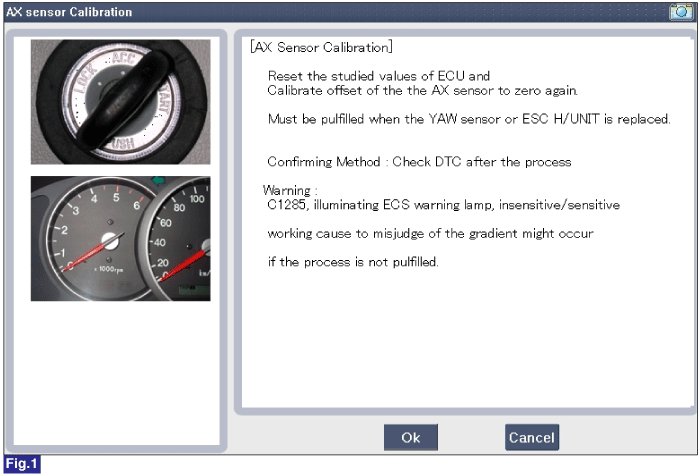

6. Perform Longitudinal G Sensor Calibration.(figure 1).

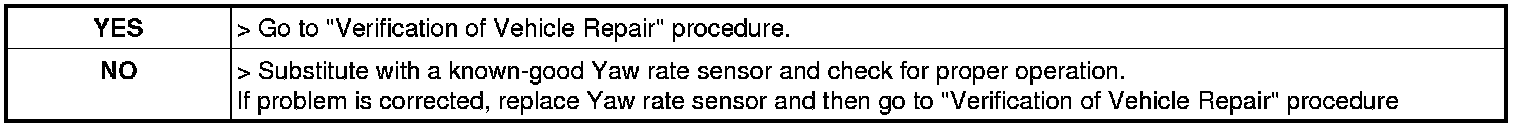

7. Is "Longitudinal sensor's calibration" completed normally?
