General Information

Electronic Stability Control
C1282 Yaw Rate & Lateral G Sensor-Electrical - General Information

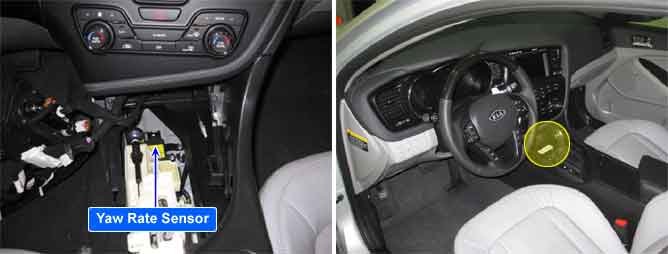

Component Location





General Description

When the vehicle is turning, the yaw rate sensor detects the yaw rate electronically by the vibration change of plate fork inside the yaw rate sensor. If the yaw velocity reaches the specific velocity after it detects the vehicle's yawing, the ESC control is reactivated. The lateral G sensor senses the vehicle's lateral acceleration. A small element inside the sensor is attached to a deflectable leverarm by lateral acceleration. Direction and magnitude of lateral acceleration loaded to vehicle can be known by electrostatic capacity changing according to lateral acceleration. It interchanges signals with HECU through extra CAN line which is only used for communication between HECU and the sensor. In case of the vehicle with 4WD & ESC, G sensor is packaged with yaw rate & later G sensor.

DTC Description

A failure is detected if the Yaw rate & lateral G & longitudinal G sensor's message was not received or the HECU detects the sensor CAN Bus off state for more than the specified failure detection time. The Monitoring starts after Power-Up.

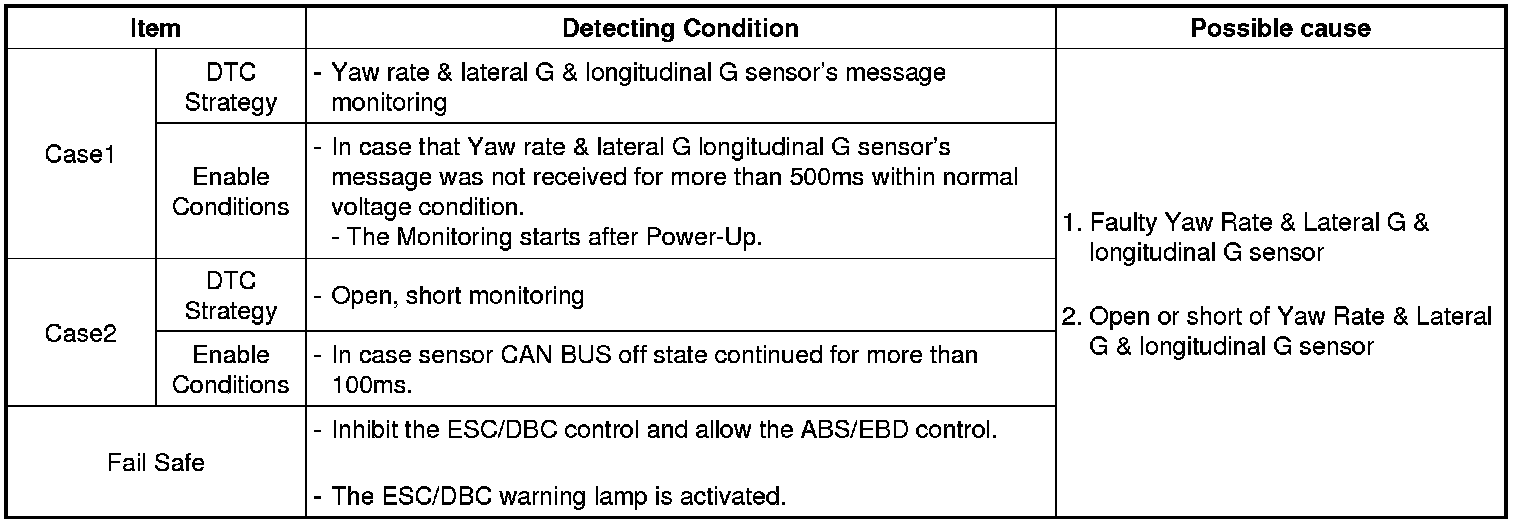

DTC Detecting Condition

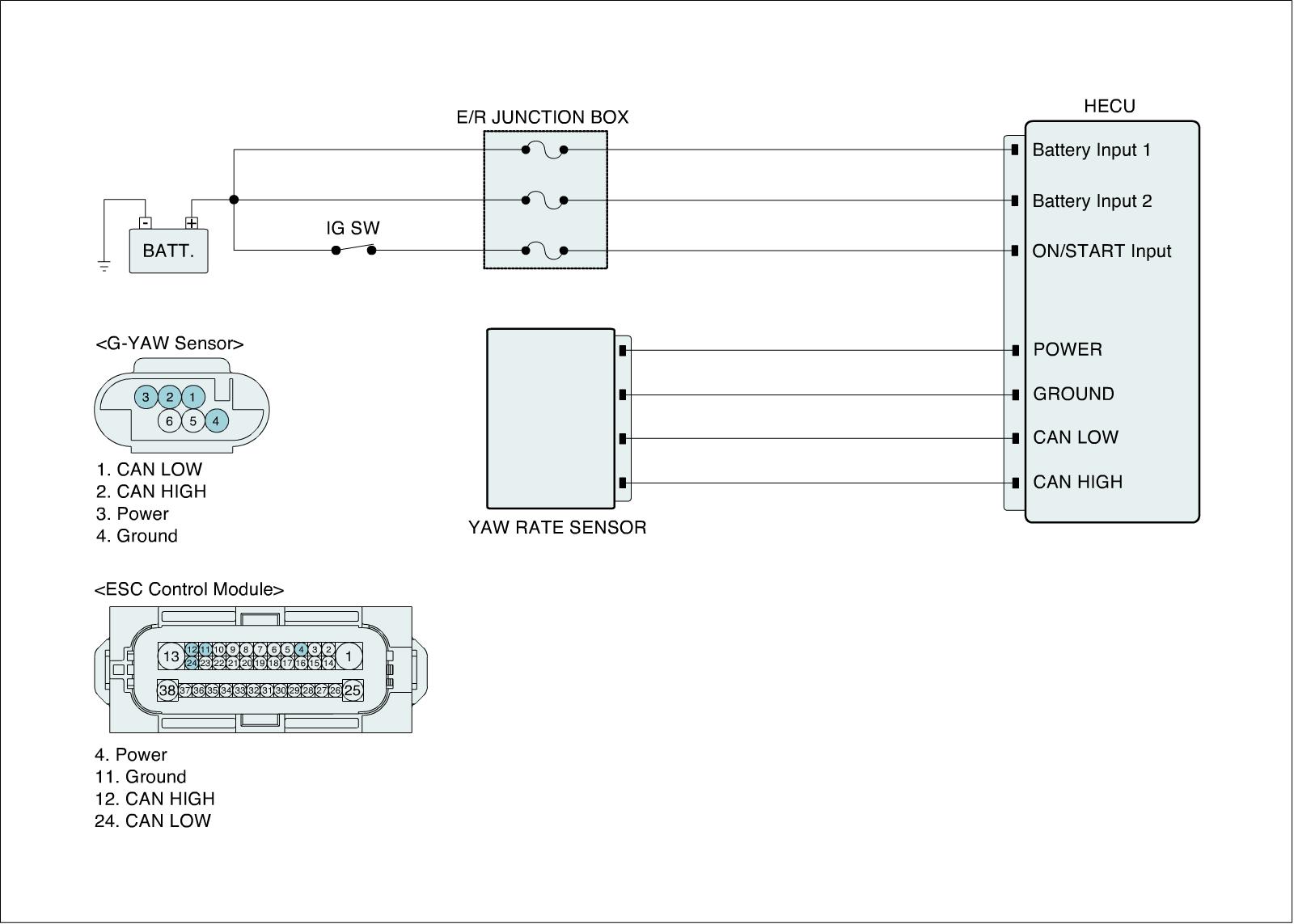

Diagnostic Circuit Diagram
