General Information

Electronic Stability Control
C1261 Steering Angle Sensor Not Calibrated - General Information

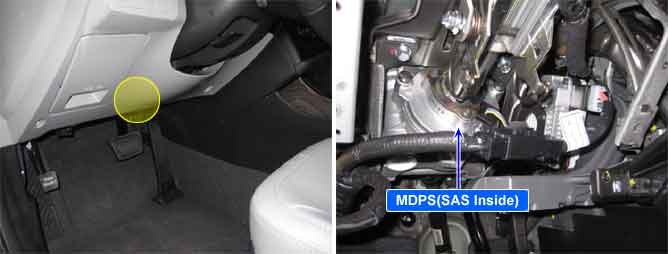

Component Location





General Description

In case of EPS equipped vehicle, the Steering angle sensor(SAS) is installed in MDPS assembly.
The SAS is used to determine turning direction and speed of the steering wheel.
The HECU uses the signals from the SAS when performing ESC-related calculations.

DTC Description

The steering angle sensor in the ESC system is an absolute angle sensor type. For this reason, the steering angle sensor needs the zero setting(Calibration) by the scantool. If the calibration of this sensor is undone, this DTC is set.

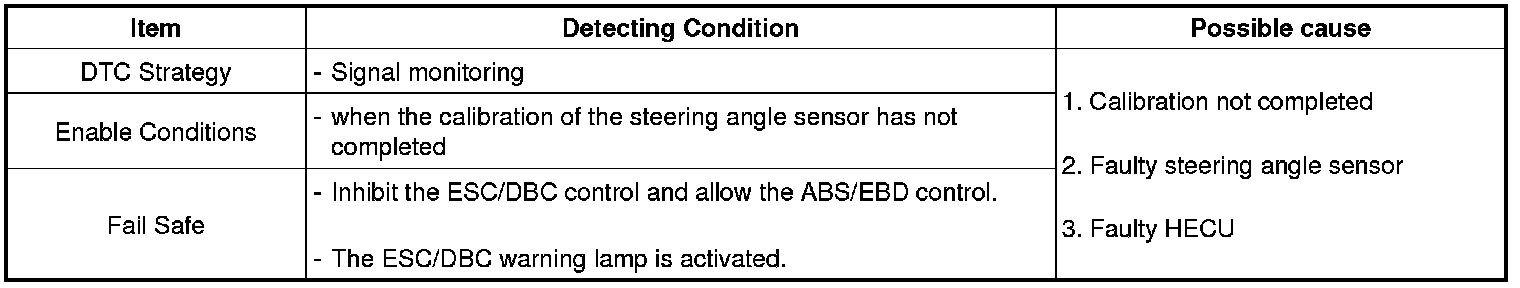

DTC Detecting Condition

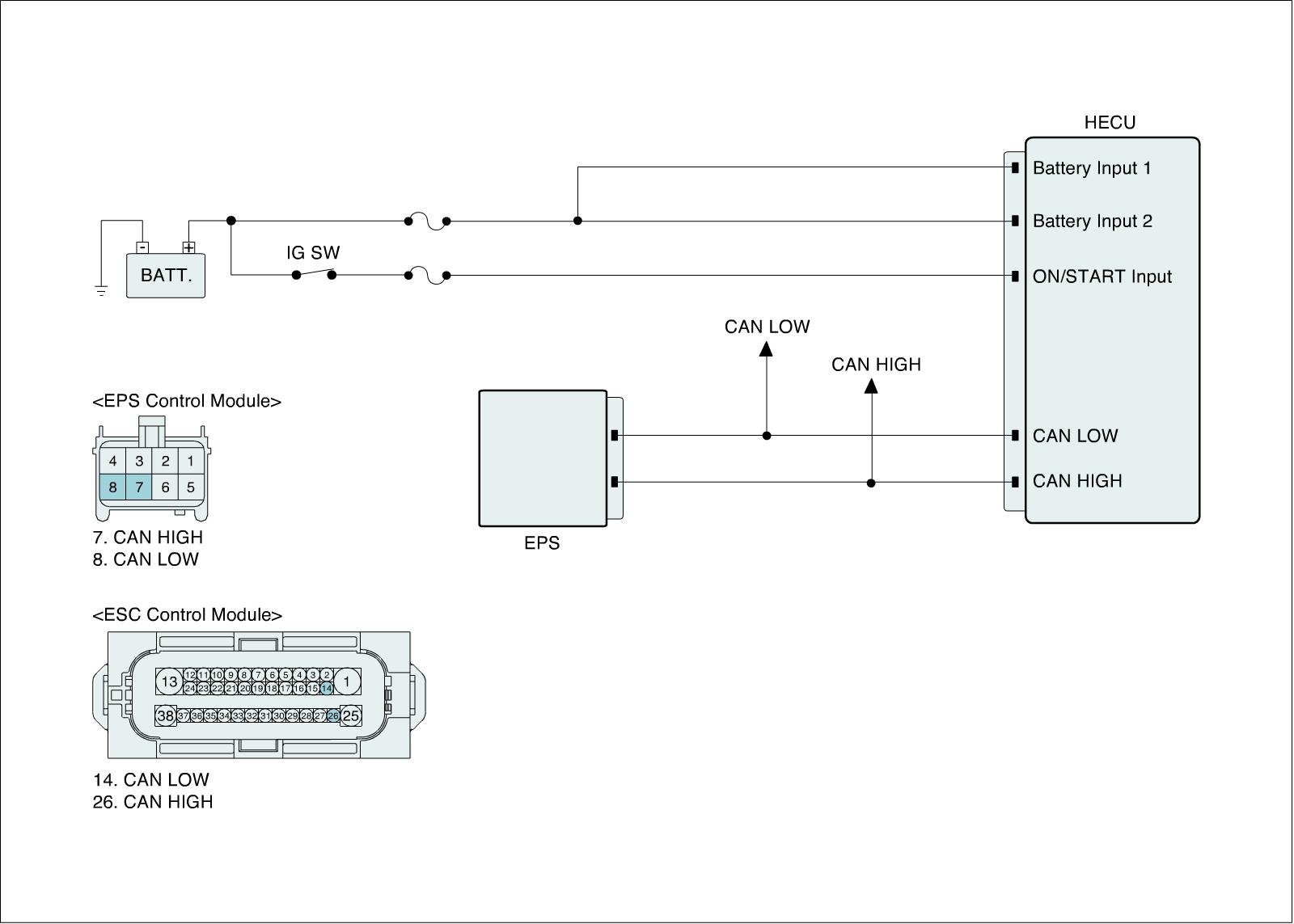

Diagnostic Circuit Diagram
