Auto Headlamp Leveling
C1255 Rear Height Sensor - Scantool Diagnostics

Scantool Diagnostics

1. Park the vehicle in a flat land and remove all the loads from the vehicle.
2. Connect scantool to Data Link Connector(DLC).
3. Monitor DTC(Diagnostics Trouble Code) on the scantool.
4. Monitor the "SENSOR ANGLE" Parameter on the Scantool.

Specification :Below - 0.4 ± 2 DEG (Unloaded Vehicle Condition)

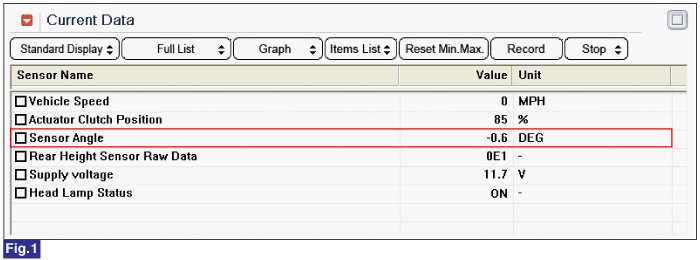

Fig.1) Engine ON-AHLS Current Data(Sensor Angle)

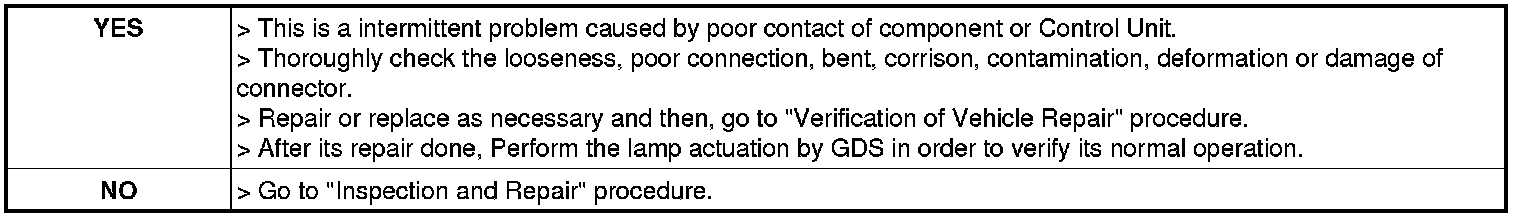

5. Is parameter displayed within the Specification?
