C1210 Wheel Speed Sensor Rear-RH Range / Performance / Intermittent - Inspection/Repair:_:Component Inspection

Component Inspection

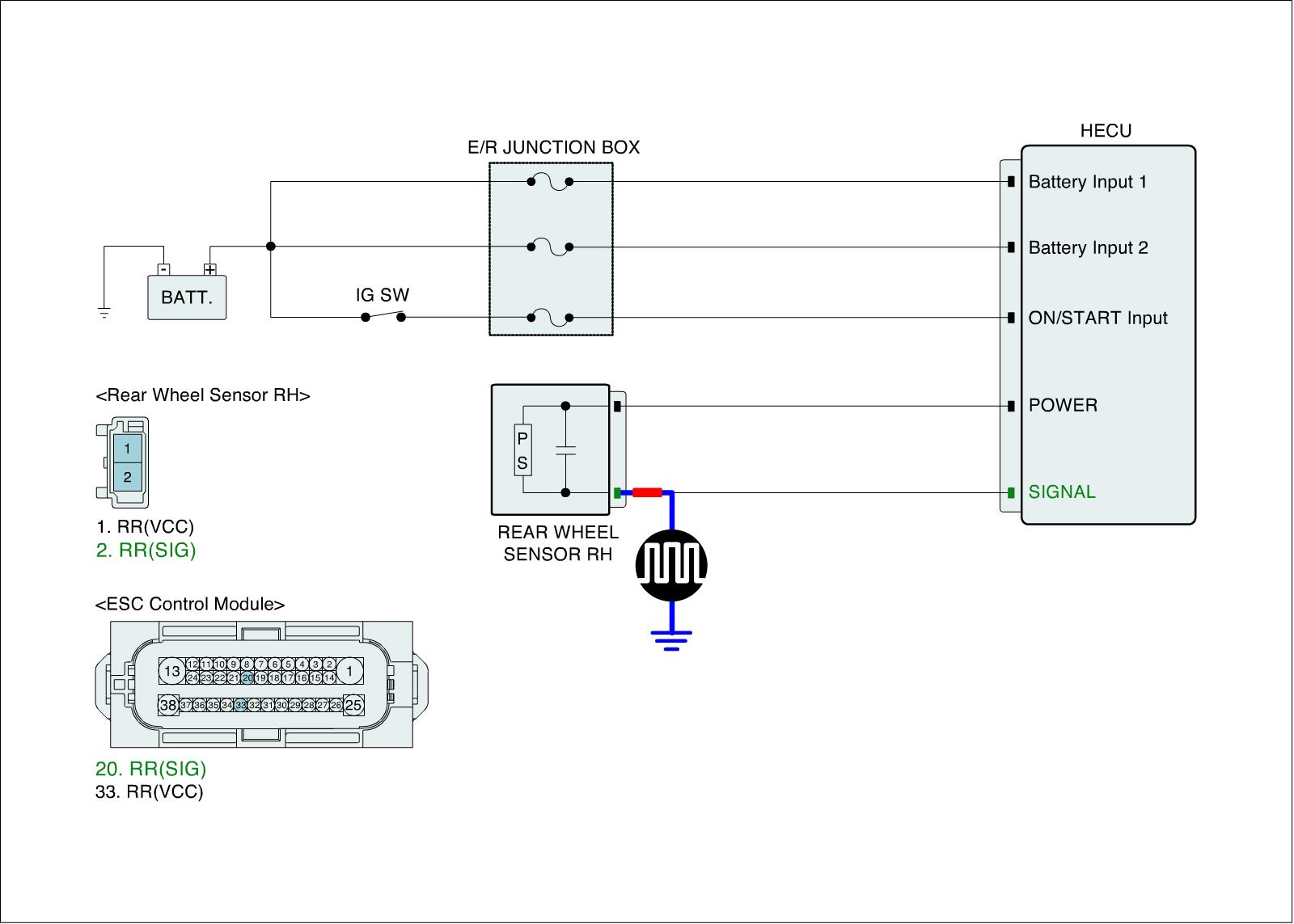

Wheel speed sensor circuit check
1. Lift the vehicle.
2. IG "ON".
3. Turn the wheel by hand.
4. Measure waveform between signal terminal of the wheel speed sensor harness connector and chassis ground with osciloscope.

Specification :High : 1.18 - 1.68V , Low : 0.59 - 0.84V

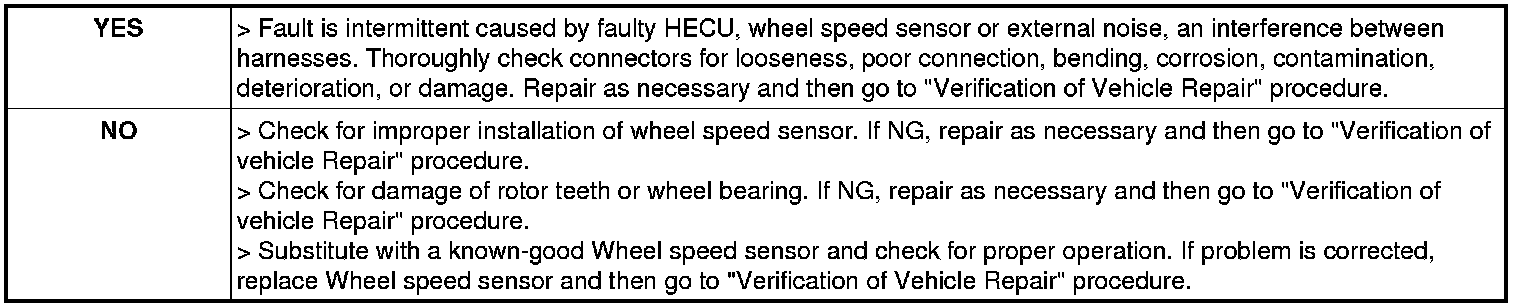

5. Is the measured waveform within specifications?
