W/Harness Inspection

Electronic Stability Control
C1209 Wheel Speed Sensor Rear-RH Open/Short - Inspection/Repair:_:W/Harness Inspection

Terminal and Connector Inspection

1. Many malfunctions in the electrical system are caused by poor harness(es) and terminals. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
2. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
3. Has a problem been found?






Power Circuit Inspection

Open or Short Check
1. IG "ON".

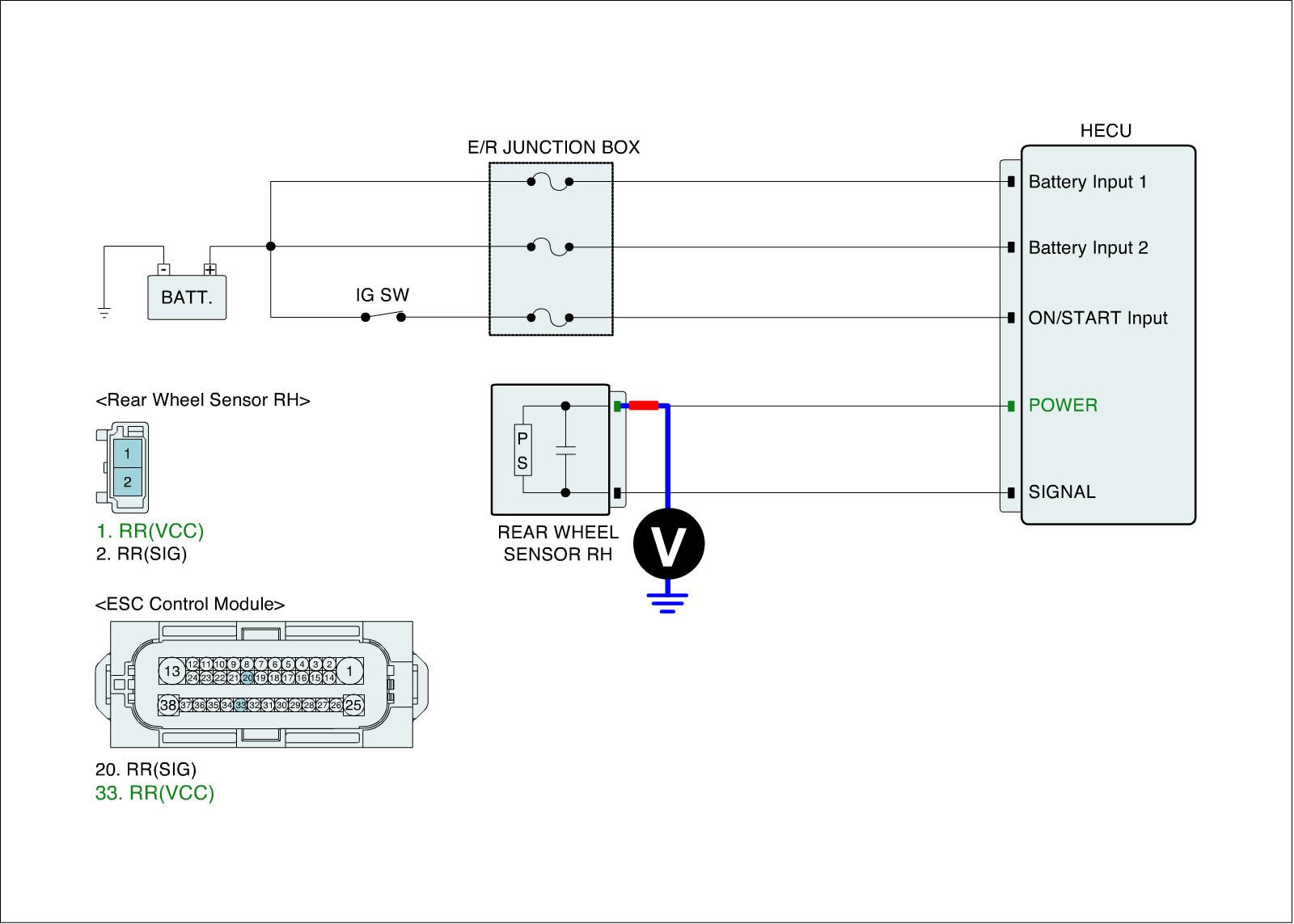

2. Measure voltage between power terminal of the wheel speed sensor harness connector and chassis ground.

Specification :Approx. B+

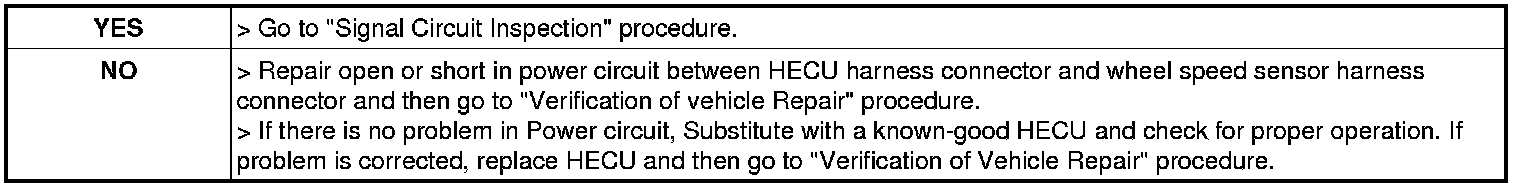

3. Is the measured value within specifications?






Signal Circuit Inspection

Wheel speed sensor circuit check
1. Lift the vehicle.
2. IG "ON".
3. Turn the wheel by hand.

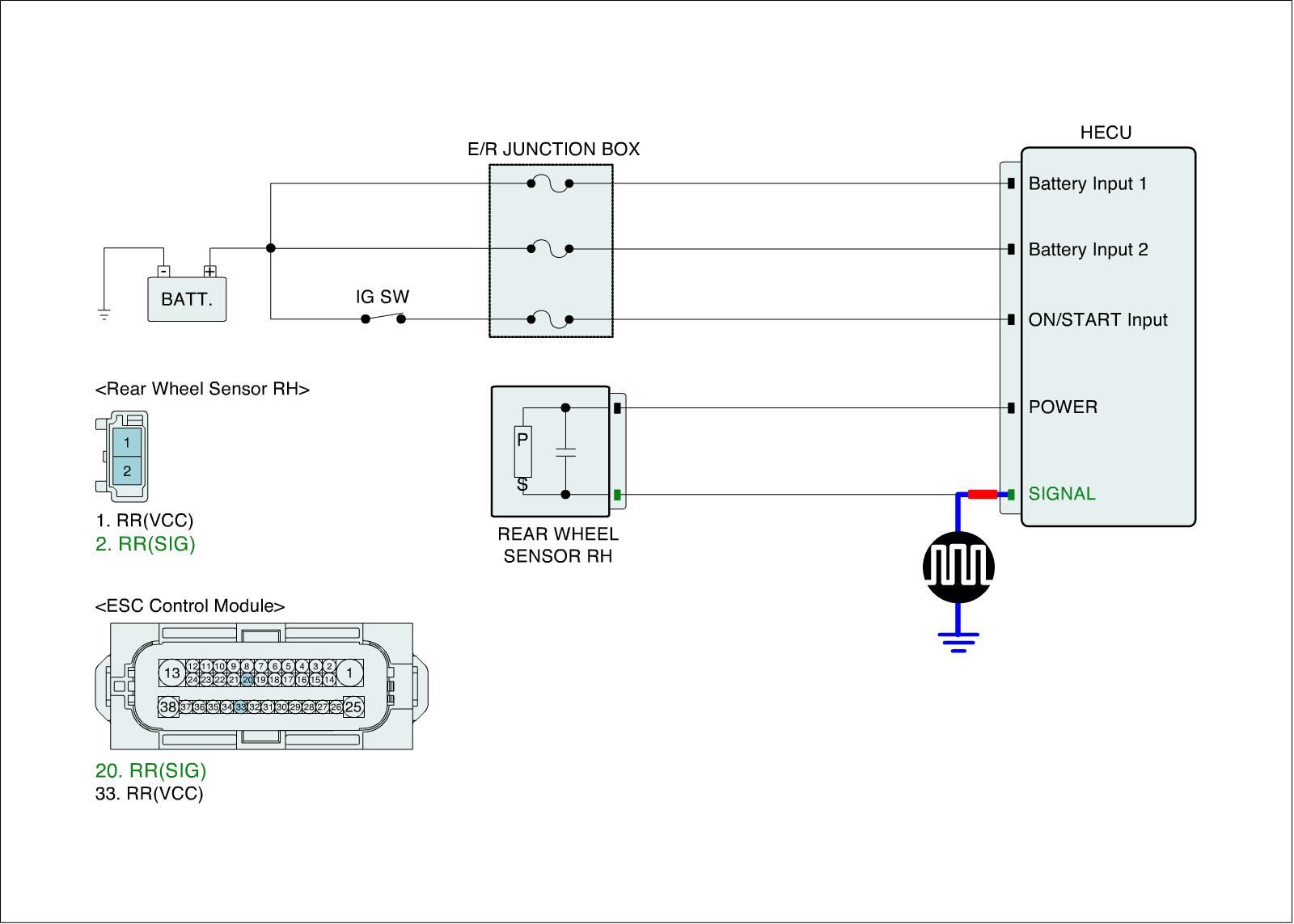

4. Measure waveform between signal terminal of the wheel speed sensor harness connector and chassis ground with osciloscope.

Specification :High : 1.18 - 1.68V , Low : 0.59 - 0.84V

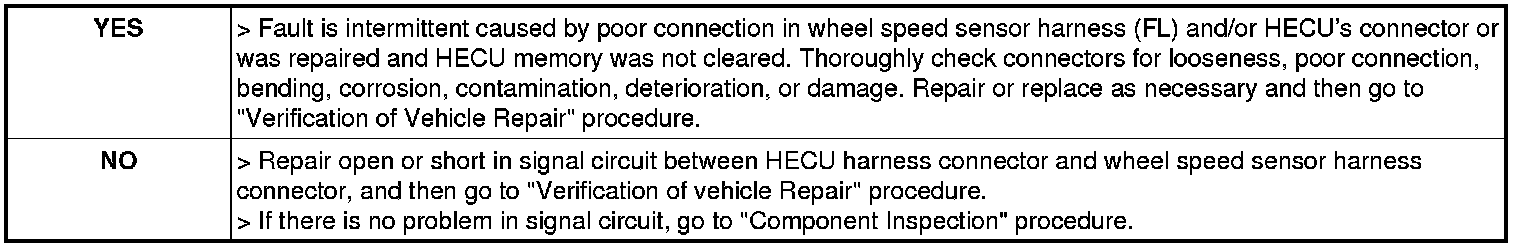

5. Is the measured waveform within specifications?
