Scantool Diagnostics

Electronic Stability Control
C1208 Wheel Speed Sensor Rear-LH Invalid/no Signal - Scantool Diagnostics

Monitor GDS Data

1. IG "ON".
2. Connect GDS to Data Link Connector(DLC)
3. Start and drive vehicle in gear and maintain vehicle speed at or above 10km/h. (6.2mph)
4. Monitor the "WHEEL SPEED SENSOR-RL" parameter on the GDS.

Specification :Compare with other parameters related to wheel speed sensor.
If it is the same as other parameters, it is in normal condition.

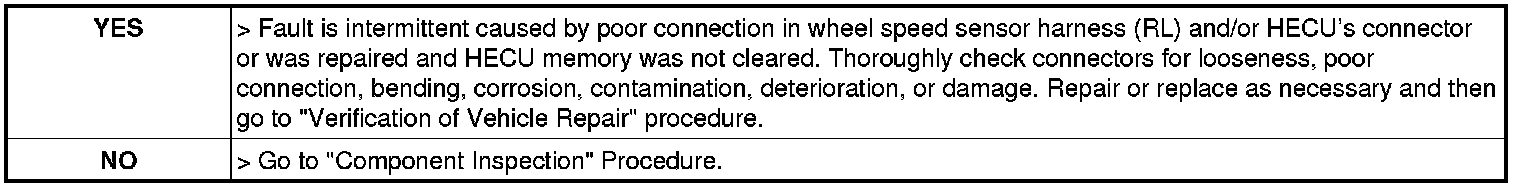

5. Is parameter displayed within specifications?
