Component Inspection

Electronic Stability Control
C1205 Wheel Speed Sensor Front-RH Invalid/no Signal - Inspection/Repair:_:Component Inspection

Component Inspection

Wheel speed sensor circuit check
1. Lift the vehicle.
2. IG "ON".
3. Turn the wheel by hand.
4. Measure waveform between signal terminal of the wheel speed sensor harness connector and chassis ground with osciloscope.

Specification :High : 1.18 - 1.68V , Low : 0.59 - 0.84V

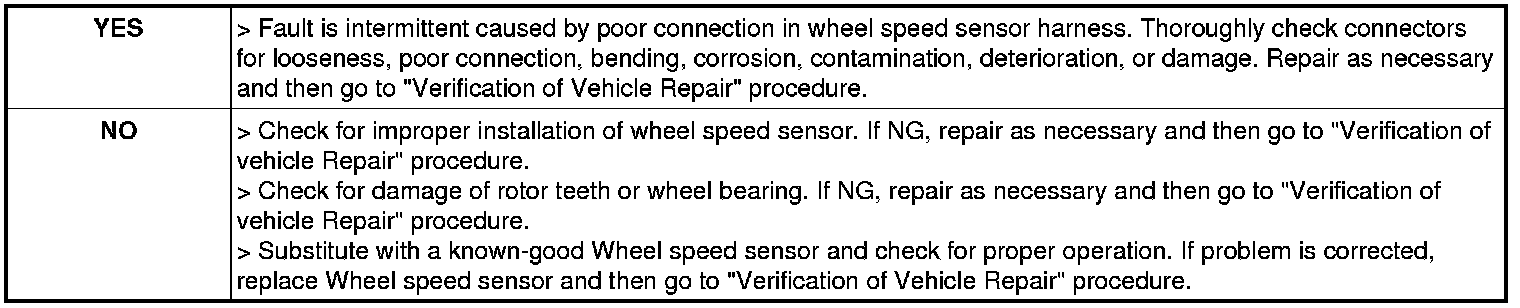

5. Is the measured waveform within specifications?
