W/Harness Inspection

Electronic Stability Control
C1112 Sensor source voltage - Inspection/Repair:_:W/Harness Inspection

Terminal and Connector Inspection

1. Many malfunctions in the electrical system are caused by poor harness(es) and terminals. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
2. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
3. Has a problem been found?






Power Circuit Inspection

Open or Short Check
1. IG "ON" & ENG "OFF".

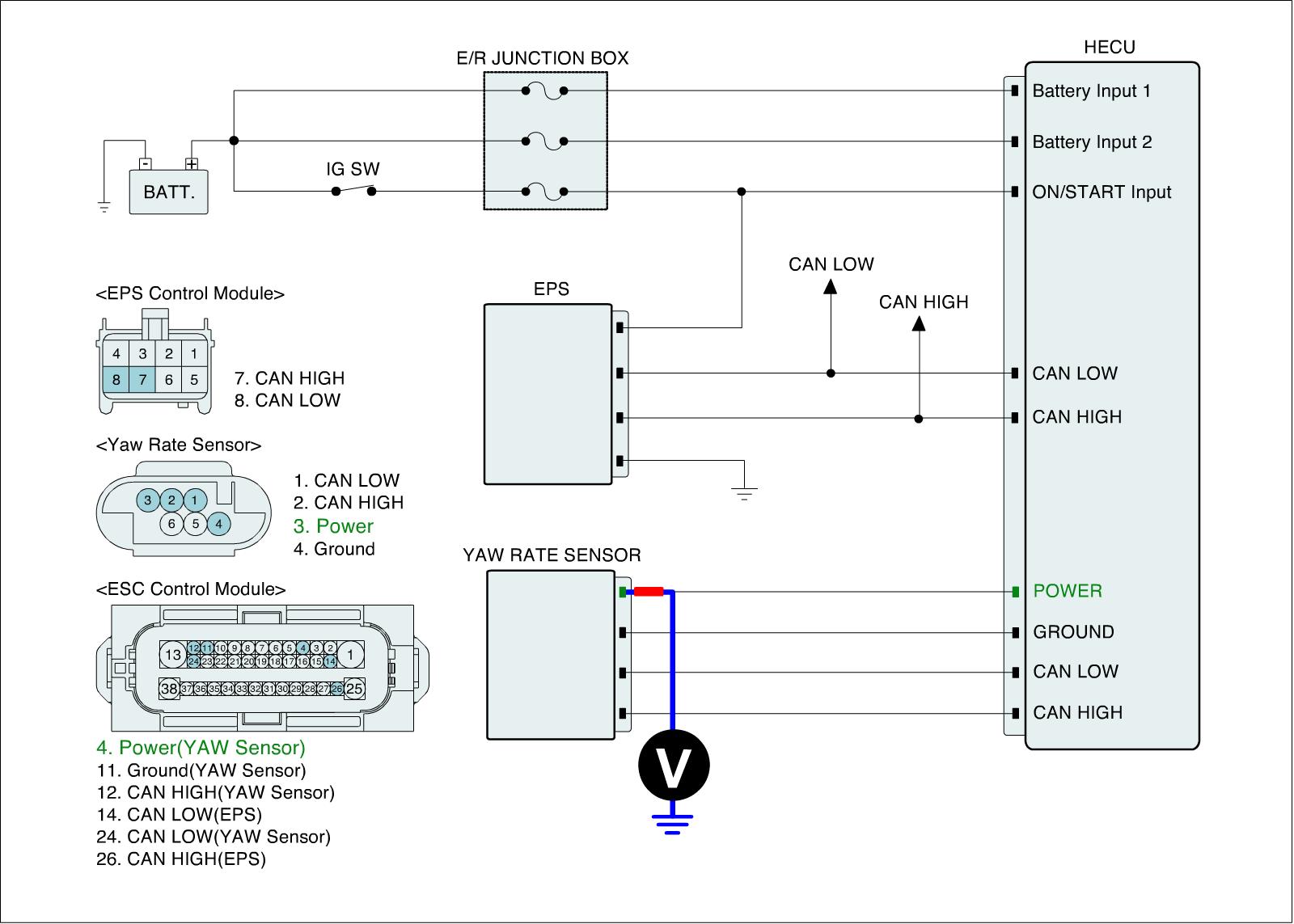

2. Measure voltage between power terminal of the Yaw rate sensor harness connector and chassis ground.

Specification :Approx. 12V (Yaw rate sensor)

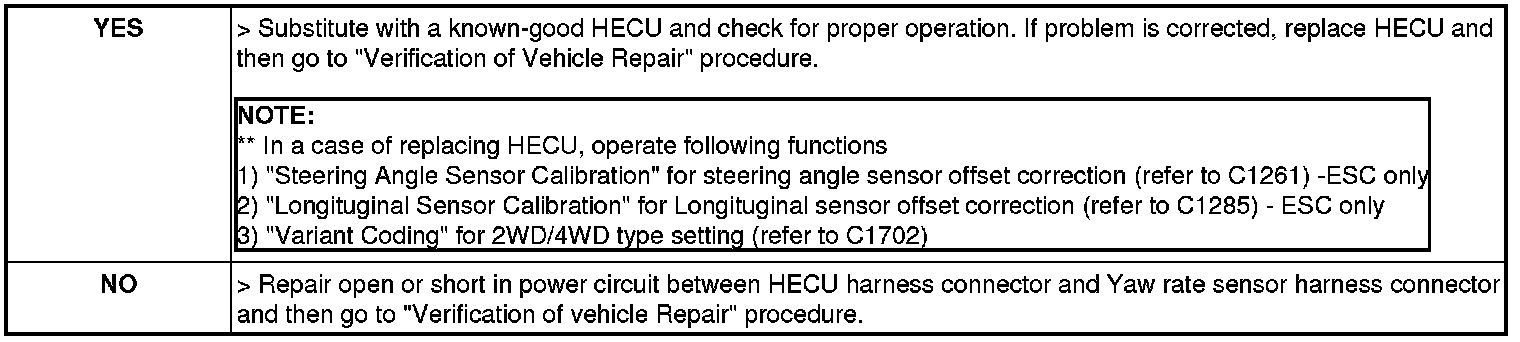

3. Is the measured value within specifications?
